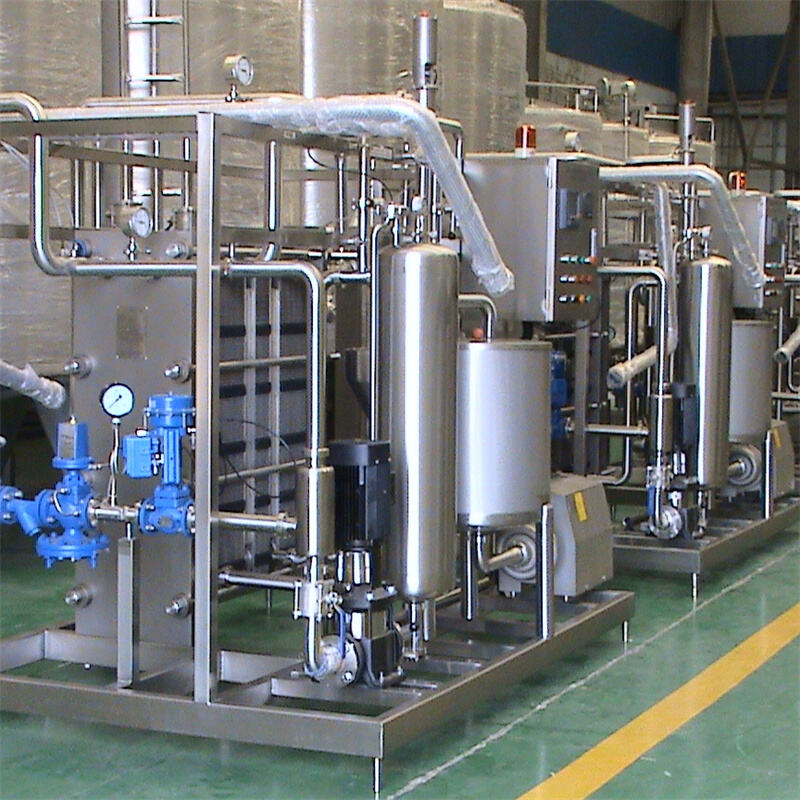

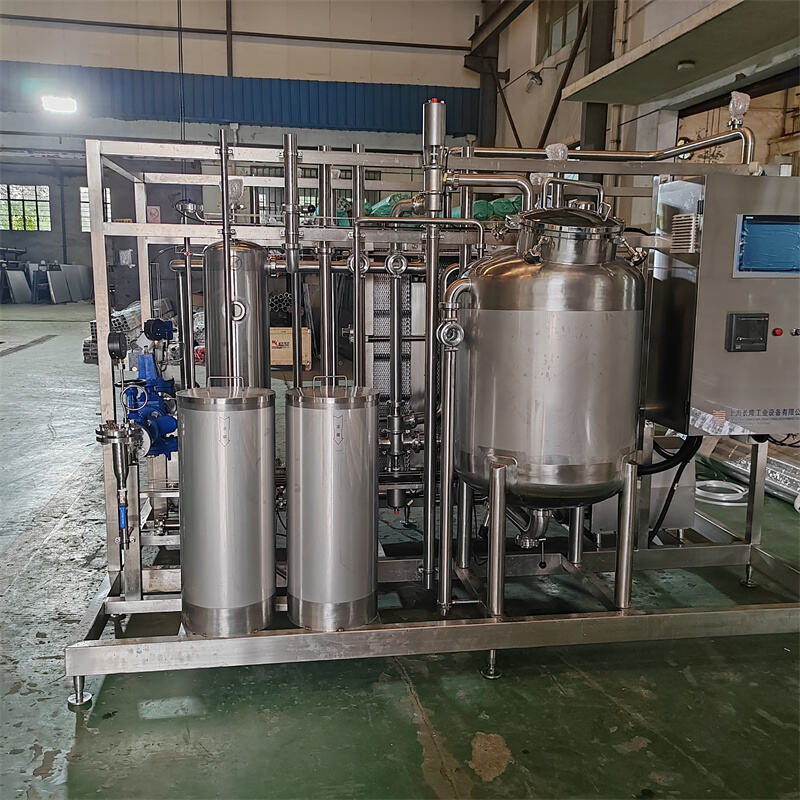

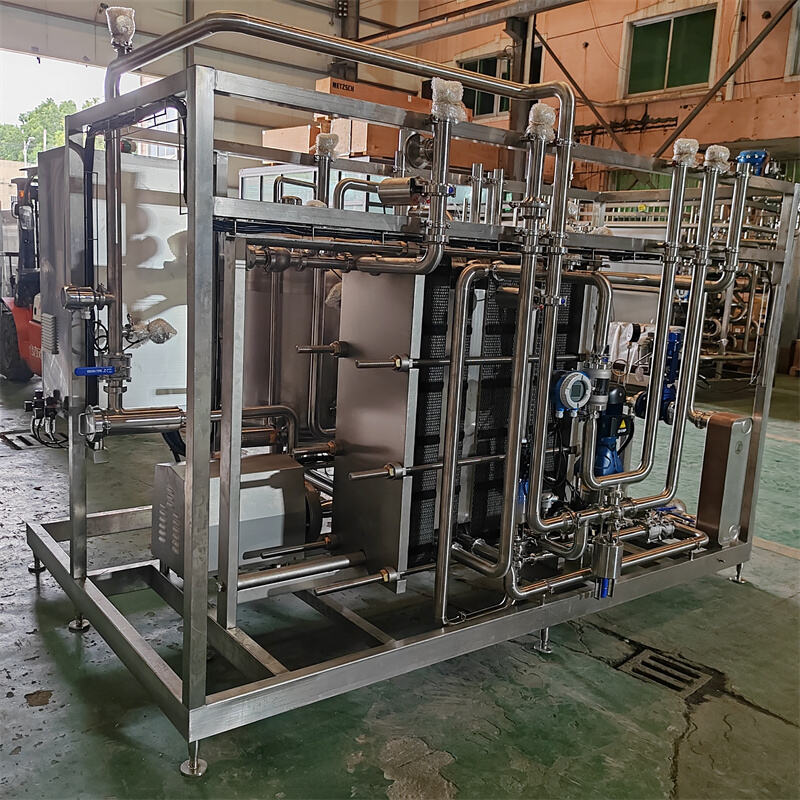

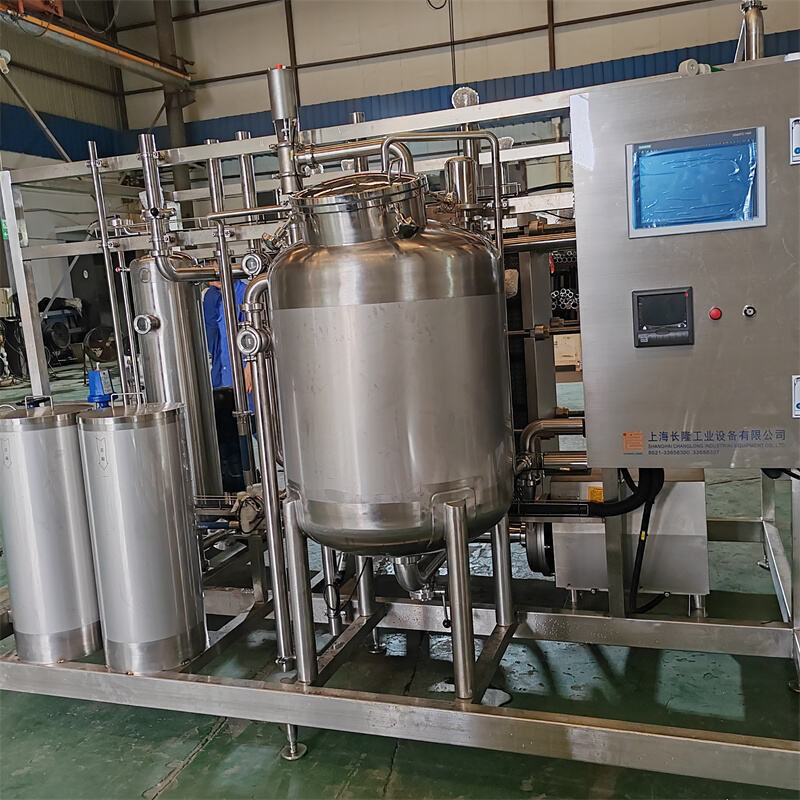

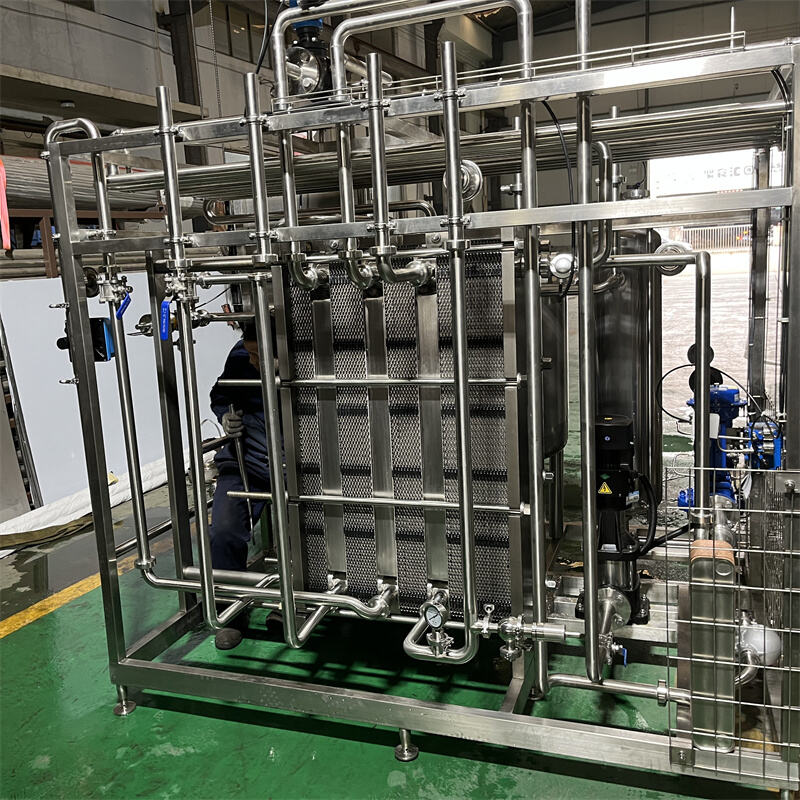

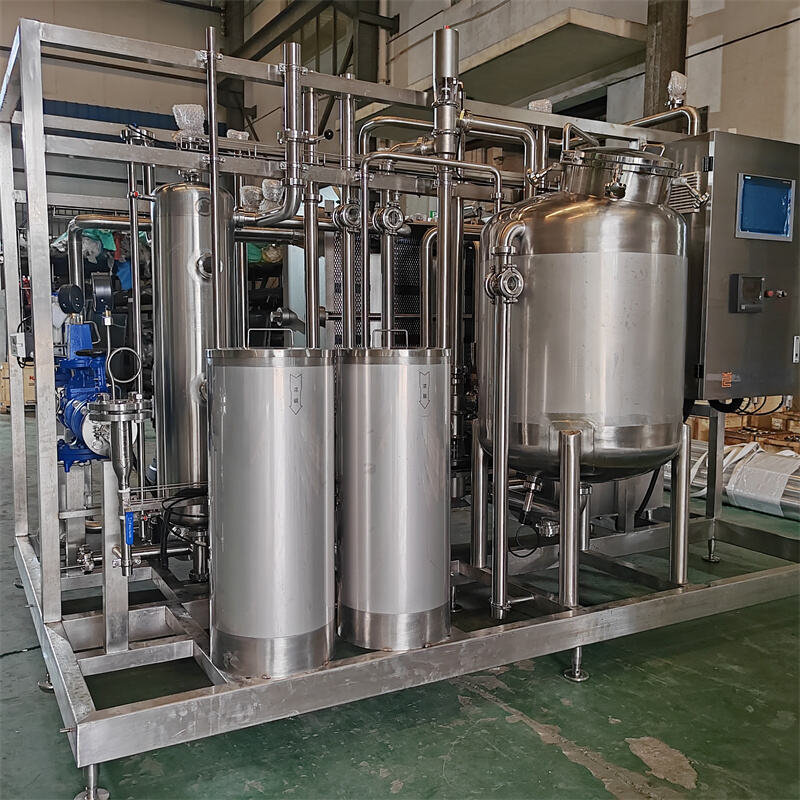

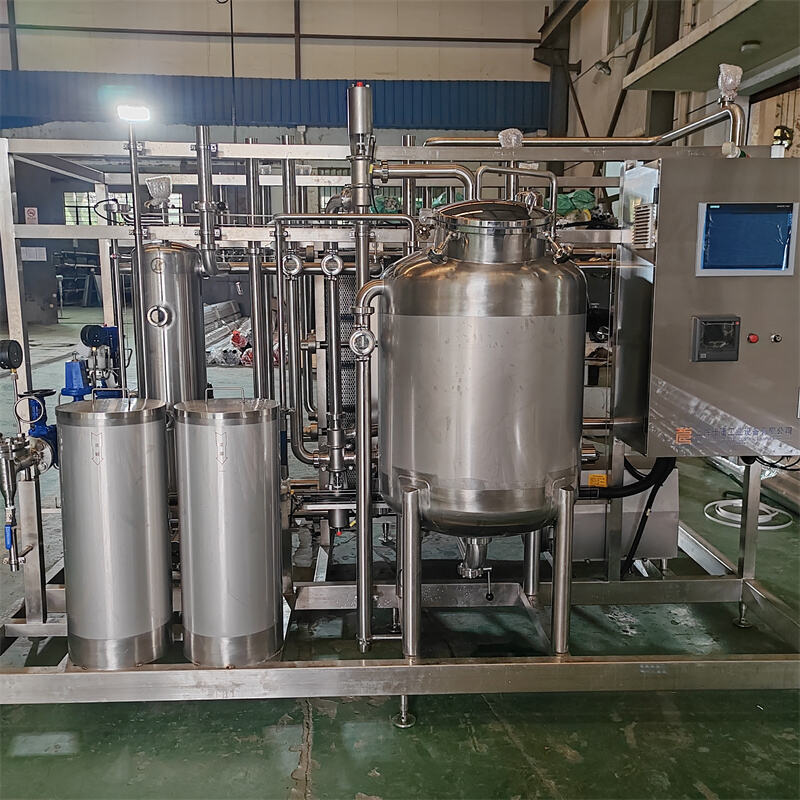

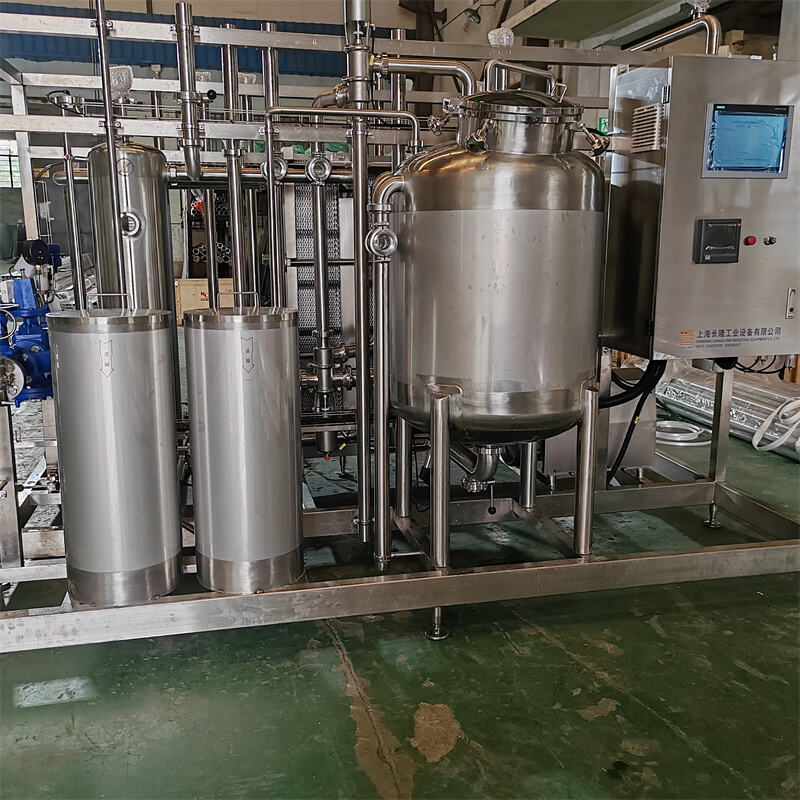

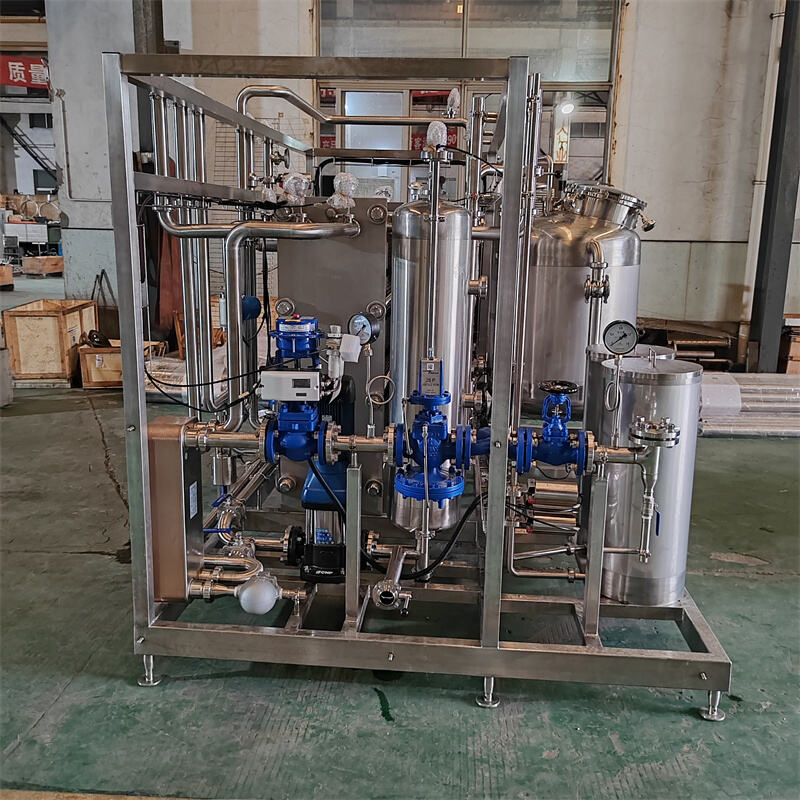

Plate HTST Sterilizer for Juice Beverage

3.1 Plate HTST Sterilizer introduction

Plate HTST equipment is designed for the continuous heating, sterilization, temperature maintenance, and cooling processes of heat-sensitive liquids such as pasteurized milk, yogurt, flavored milk, fresh milk, fruit juice, beer, beverages, fruit wine, ice cream, dairy drinks, concentrated juice, and wine.

Using high precision products/water temperature control, product by the balance tank into the heat exchanger, the heat thermal material part and kill bacteria so cold material after heat transfer temperature reaches the preset value, and then through indirect heating by steam heating to the sterilization temperature, the material in the temperature in the tube to maintain the required temperature for a period of time for ultra high temperature sterilization, After coming out of the temperature holding tube, heat exchange is carried out with the cold material entering the machine, and finally it is cooled to the predetermined outlet temperature in the cooling section. The whole process is carried out in a closed state to ensure the biological stability of the material. And according to the user of the material heating, heat preservation, sterilization cooling of different technological requirements for specific combination system design, to meet all kinds of technological requirements.

Plate HTST Sterilizer Controlling and Basic Parameters

1-Control mode: semi-automatic control, full automatic control (PLC control, touch screen display).

2-Equipment main configuration: Material pump, hot water pump balance tank, steam controlling system, hot water system, temperature control and recorder, electrical control system, flow rate meter, and CIP cleaning system etc. (steam heating and electric heating )

3-Production capacity: 500L∽40000L/H (according to different production )

4.HTST Sterilizer working technology description:

5℃ inlet →cream separator 45℃(optional) → homogenization 65℃ (optional) →65∽125℃ HTST→ 5℃/25℃/40℃/68℃/88℃ outlet→buffering tank/filling machine (according to different production )

5.Steam pressure: ≥ 0.6Mpa ,

6.Compressed air: ≥ 0.7mpa

7.Cooling water inlet temperature: ≤30℃. pressure: ≥0.3mpa

8.Chilled water inlet temperature: ≤10℃. pressure: ≥0.3mpa

1-Fresh Milk HTST Sterilizer technology :

5℃ inlet →cream separator 45℃(optional) → homogenization 65℃→115℃ HTST→ 5℃ outlet→buffering tank

2.Coconut Milk HTST Sterilizer technology :

5℃ inlet →125 HTST→ 5℃ outlet→buffering tank

3- Whipping Cream HTST Sterilizer technology :

40℃ inlet →120℃ HTST→ 10℃ outlet→buffering tank

4-Juice & Beverage HTST Sterilizer technology :

25℃ inlet→homogenization 65℃(optional)→125℃ HTST→ 25℃ outlet→buffering tank

25℃ inlet→homogenization 65℃(optional)→125℃ HTST→ 85℃ outlet→Filling machine

5-Soybean sauce HTST Sterilizer technology :

28℃ inlet→130℃ HTST→ 50℃ outlet→buffering tank

6-Vinegar HTST Sterilizer technology :

28℃ inlet→120℃ HTST→ 60℃ outlet→buffering tank

Plate HTST Sterilizer are widely used in various applications, including Dairy, Beverage, Juice , Beer , yoghurt ,ice cram , soymilk. Soybean sauce , HVAC industrial processes, and district Heating and Cooling.

Plate HTST Sterilizer s can be connected to separators, degassers, flash evaporators, and other equipment. The outHTST of this equipment is primarily regulated by flow controllers in the feed system. When employing full-flow homogenization, the flow is controlled by the homogenizer. Both heating and cooling of the product occur within the heat recovery section of the plate heat exchanger.

Questionnaires of Plate HTST Sterilizer

More information you can contact us :

Email : [email protected]

Whatsapp: +8613918733638

Wechat: LV06090709

Advantages and Features of Shanghai Changlong Plate Sterilizer

a. Both materials and heating medium undergo non-contact heat exchange within their respective sealed systems, ensuring material hygiene and safety;

b. Instantaneous sterilization with short processing time preserves nutritional components;

c. Entire unit constructed from food-grade stainless steel, meeting national safety and hygiene standards for beverage and food equipment;

d. Excellent heat transfer efficiency with high heat recovery rate and low energy consumption;

e. Key control components, valves, and accessories are imported for extended service life;

f. PLC control enables automatic regulation of heating temperatures at each stage, hot water temperature, and steam flow rate. An automatic material recirculation system ensures 100% sterilization effectiveness;

g. Simple structure, easy to clean, user-friendly operation, and low maintenance costs.

Q1:Which city are you in? How can I get to your factory? Are you a trading company or factory?

A1: We are in Shanghai City, China . It will take 1 hour from PVG and HongQiao Airports to our factory .

We are a manufacturer with trading branch office .

Q2: Why is your price higher than others?

A2: We offer high-end machines in our business. Welcome to our factory to have a visiting. And you will see the differences in our working plant.

Q3: What is the equipment delivery time?

A3: Normally 30-60 working days depends on different machines,

Heat Exchanger making period : within 15 working days .

Plate UHT HTST Sterilizer making period : within 30 working days .

Aseptic UHT sterilizer making period : within 50 working days .

Homogenizer and CIP cleaning system making period : within 50 working days .

Blowing & filling & Labelling Machine making period : within 50 working days .

We can shorted the making period according to the working situation .

Q4: How to install your machines when it arrives? How much the cost?

A4: First we can supply the drawing for reference , the equipment will delivery as a whole set machine .

Or We will arrange our engineers to your factory to install the machines and train your staff how to operate the machines If you need.

Customers will take charge of the Accommodation one site and our engineer fee for commission is USD300/day/person.

Or you can arrange you engineers to study at our factory. You are responsible for air tickets,

Q5: How long time for installation and testing ?

A5: Subject to machines and the situation in your factory. If everything is

ready, it will take about 5 days for installation, and 5-10 days for testing and training .

Q6: How about the spare parts?

A6: We will send one year enough easy-broken spare parts together with the machines for free.

Q7: What is your guarantee?

A7: We have one year guarantee sine the equipment is Acceptable debugging and supplying life-long technical support. Our service is also including machine maintain and spared parts .

Q8: What is your payment term?

A8: Single equipment payment item : 50%T/T as advance payment, then 50% TT payment before shipping. ( L/C is also supported) .

The turkey processing line payment item : 40%T/T as advance payment, then 60% TT should be paid before shipping.
