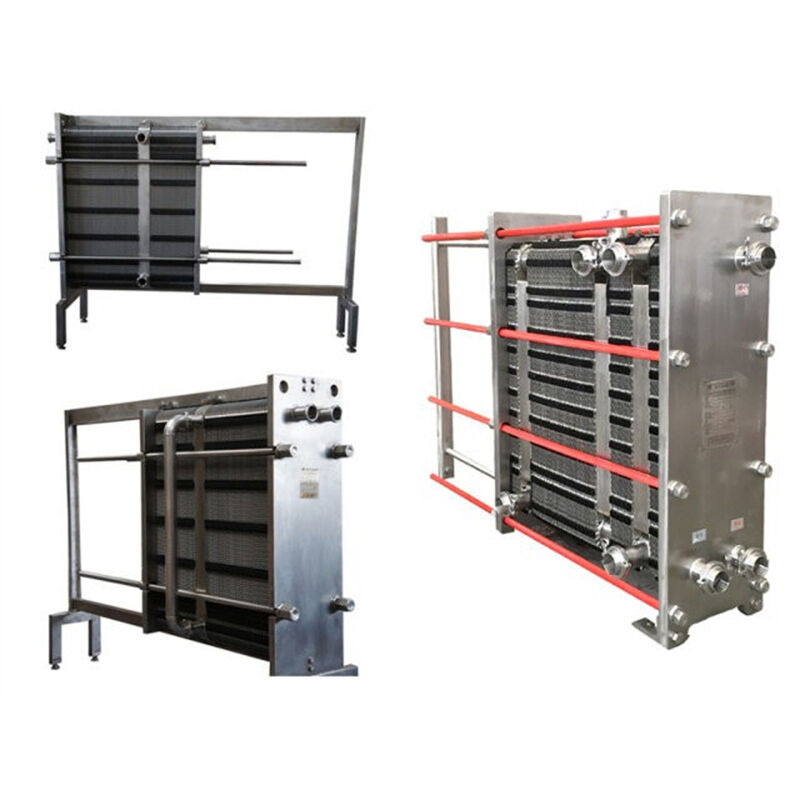

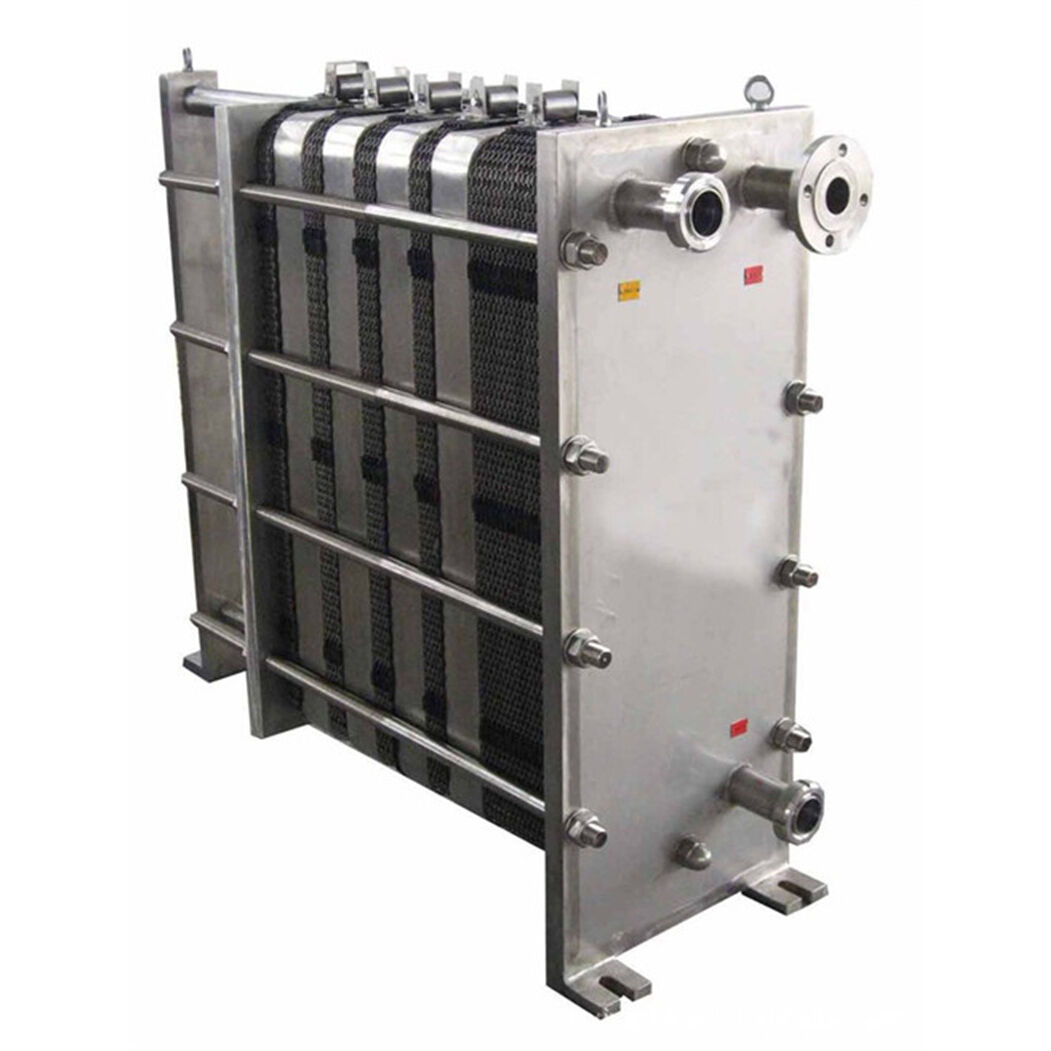

Multi-Section Plate Heat Exchanger Sus304/316L for milk

3.1 Plate heat exchangers work by transferring heat between two fluids without them mixing. They utilize a series of thin, corrugated metal plates to create alternating channels for hot and cold fluids. Heat is transferred through the plates via conduction and convection, with the hot fluid cooling down and the cold fluid heating up.

This process continues until thermal equilibrium is reached.

3.2 Main functions are following :

• Plate Arrangement:

The plates are arranged in a stack, with gaskets or brazing sealing the edges to prevent fluid mixing.

• Fluid Flow:

Hot and cold fluids flow through separate channels created by the plates, often in a counter-current direction to maximize heat transfer.

• Heat Transfer Mechanism:

Heat is transferred through the plates via conduction and convection, with the hot fluid cooling and the cold fluid warming.

• Efficiency:

The large surface area provided by the plates, coupled with turbulent flow created by the corrugated design, allows for efficient heat transfer.

• Compact Size:

Plate heat exchangers are relatively compact compared to other types of heat exchangers.

3.3 Products Advantages are following :

Highly efficient heat transfer performance.

Compact and lightweight design.

Outstanding operational flexibility.

Precise temperature control.

Low heat loss characteristics.

Wide range of media compatibility.

1-Dairy & Milk Cooling technology :

65℃→40℃→5℃ ( cooling water & ice water : 0.3Mpa)

Cooling water temp: 40℃←30℃ (3:1)

Ice water temp:12℃←2℃ (4:1)

2-Fermentation yoghurt cooling technology :

Yoghurt: 45℃→25℃→5℃

Cooling water temp: 40℃←30℃ (2:1)

Ice water temp:12℃←2℃ (2:1)

3-Ice Cream cooling technology :

Ice cream cooling : 85℃→40℃→5℃

Cooling water temp: 40℃←30℃ (5:1)

Ice water temp:12℃←2℃ (4:1)

4-Juice & Beverage Cooling technology :

PHE : 85℃→45℃→10℃ ( cooling water & ice water : 0.3Mpa)

Cooling water temp: 40℃←30℃ (4:1)

Ice water temp:12℃←2℃ (4:1)

5-Sugar solution Cooling technology :

PHE : 65℃→30℃→10℃ ( cooling water & ice water : 0.3Mpa)

Cooling water temp: 40℃←30℃ (3.5:1)

Ice water temp:12℃←2℃ (2:1)

6- RO water Cooling technology :

PHE : 95℃→50℃→20℃ ( cooling water & ice water : 0.3Mpa)

Cooling water temp: 40℃←30℃ (5:1)

Ice water temp:12℃←2℃ (3:1)

Plate heat exchangers are widely used in various applications, including Dairy, Beverage, Juice , Beer , RO water ,soymilk. Soybean sauce , HVAC industrial processes, and district heating and cooling.

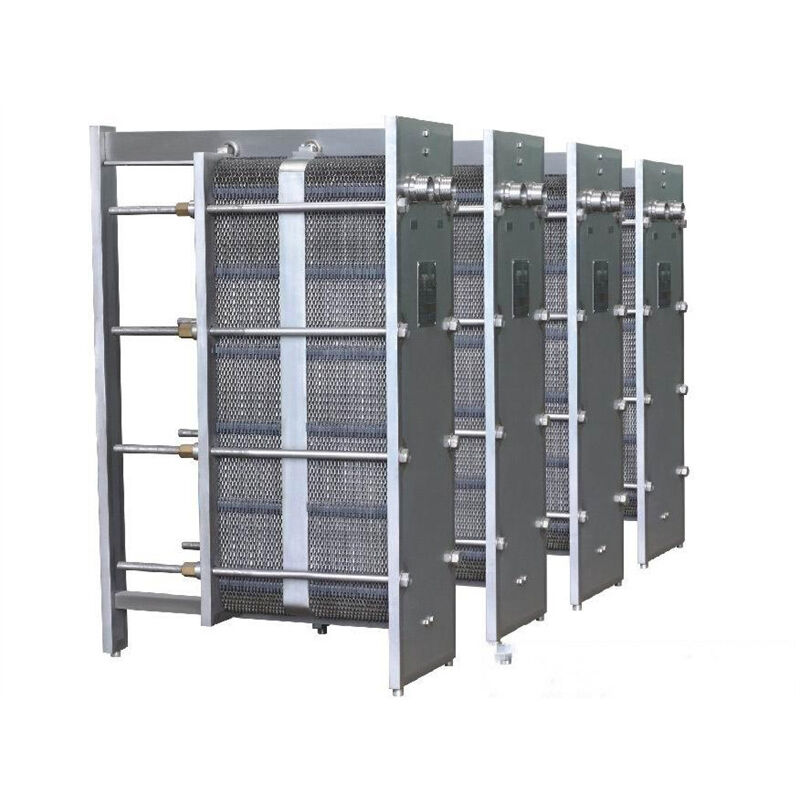

Technical parameter of Multi-section plate heat exchanger

More information you can contact us :

Email : [email protected]

Whatsapp: +8613918733638

Wechat: LV06090709

1 . We will select different plate types and materials based on the various working conditions of the customers.

2. All rubber gaskets are developed and custom-made according to our plate model , to ensure the timeliness of after-sales service.

3. The frame of plate heat exchangers is typically made of Q235-A standard carbon steel, with a Sus304 plate on the outside, or treated with epoxy coal tar or epoxy zinc-rich anti-corrosion coating to ensure corrosion resistance and durability。

4. The overall material strength is required to be high, and a combination structure of movable clamping plates and fixed clamping plates is used for easy disassembly and maintenance.

5. Reasonable design advantages,

‌Number of plates‌: It is recommended that the number of plates in a single device should not exceed 250∽350 to avoid low flow rates affecting heat transfer efficiency. ‌

6.‌Process combination‌: Select a single-pass or double-pass design based on the characteristics of the medium to ensure uniform flow rates. ‌

Q1:Which city are you in? How can I get to your factory? Are you a trading company or factory?

A1: We are in Shanghai City, China . It will take 1 hour from PVG and HongQiao Airports to our factory .

We are a manufacturer with trading branch office .

Q2: Why is your price higher than others?

A2: We offer high-end machines in our business. Welcome to our factory to have a visiting. And you will see the differences in our working plant.

Q3: What is the equipment delivery time?

A3: Normally 30-60 working days depends on different machines,

Heat Exchanger making period : within 15 working days .

Plate UHT Pasteurizer making period : within 30 working days .

Aseptic UHT sterilizer making period : within 50 working days .

Homogenizer and CIP cleaning system making period : within 50 working days .

Blowing & filling & Labelling Machine making period : within 50 working days .

We can shorted the making period according to the working situation .

Q4: How to install your machines when it arrives? How much the cost?

A4: First we can supply the drawing for reference , the equipment will delivery as a whole set machine .

Or We will arrange our engineers to your factory to install the machines and train your staff how to operate the machines If you need.

Customers will take charge of the Accommodation one site and our engineer fee for commission is USD300/day/person.

Or you can arrange you engineers to study at our factory. You are responsible for air tickets,

Q5: How long time for installation and testing ?

A5: Subject to machines and the situation in your factory. If everything is

ready, it will take about 5 days for installation, and 5-10 days for testing and training .

Q6: How about the spare parts?

A6: We will send one year enough easy-broken spare parts together with the machines for free.

Q7: What is your guarantee?

A7: We have one year guarantee sine the equipment is Acceptable debugging and supplying life-long technical support. Our service is also including machine maintain and spared parts .

Q8: What is your payment term?

A8: Single equipment payment item : 50%T/T as advance payment, then 50% TT payment before shipping. ( L/C is also supported) .

The turkey processing line payment item : 40%T/T as advance payment, then 60% TT should be paid before shipping.
