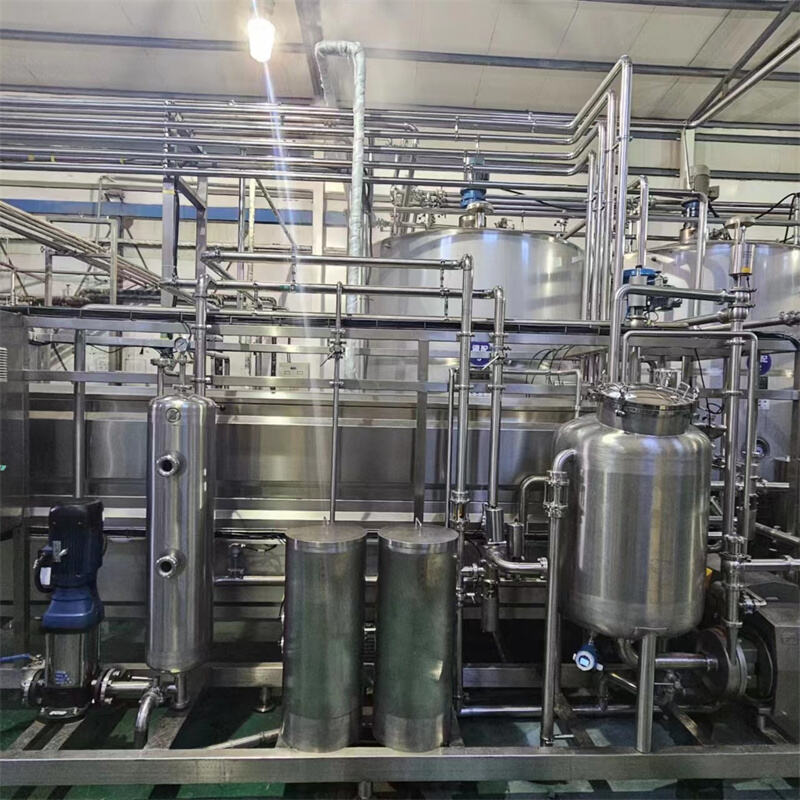

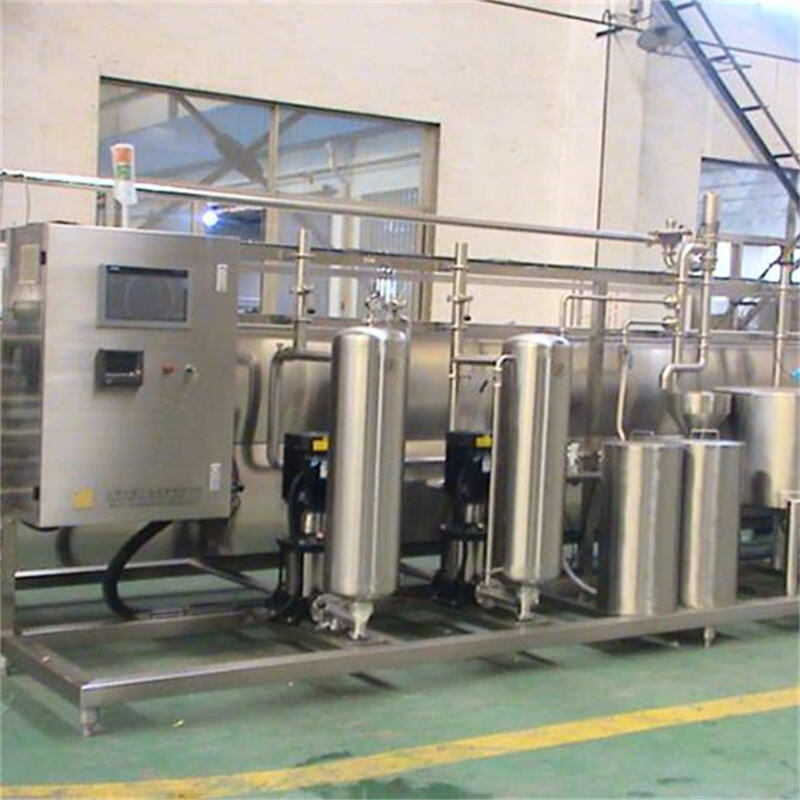

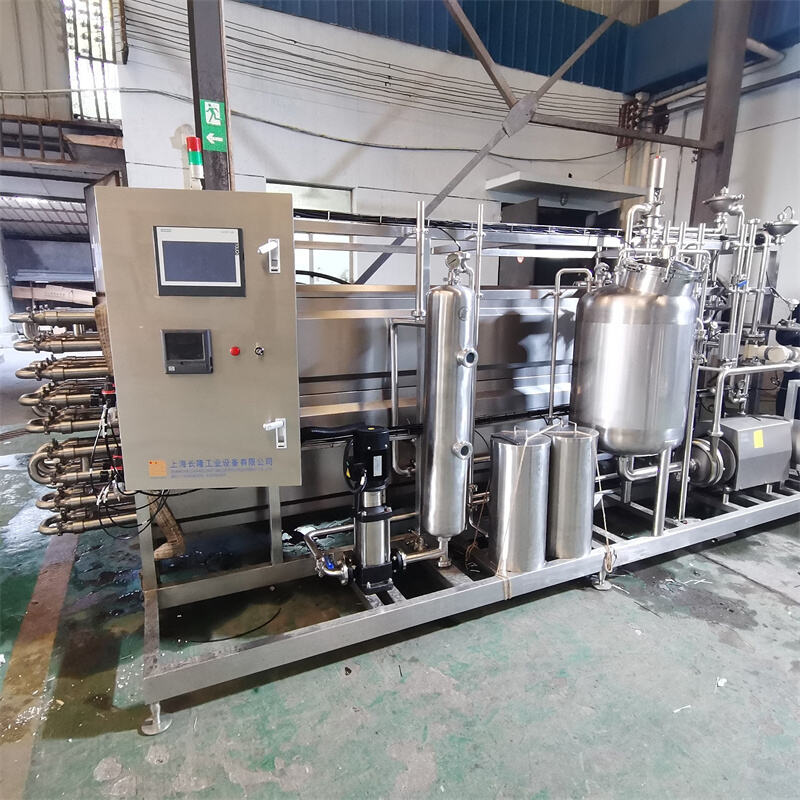

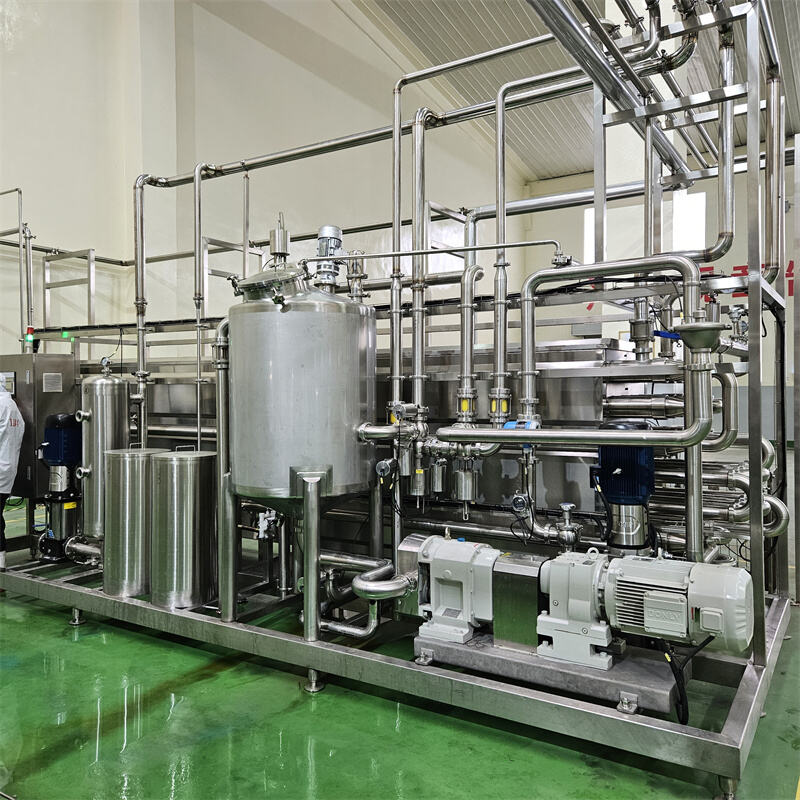

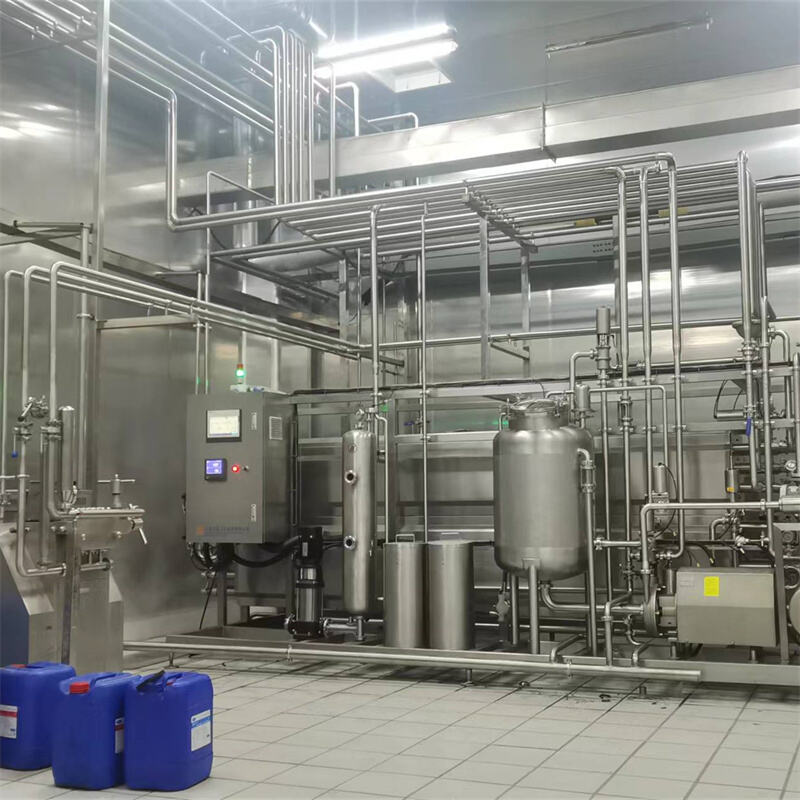

Tubular HTST Sterilizer for NFC juice

3.1 Tubular HTST Sterilizer introduction

Tubular HTST sterilizer, mainly used in various concentrated fruit pulp and various sauces and other products sterilization and cooling, touch screen operation automatic control with self-cleaning and reverse cleaning system.

Widely used in milk, juice, tea drinks, milk drinks, ketchup, seasoning, beer, cream, ice cream, egg products, solid powder and other products of the original formula determination and update, product taste discrimination, color evaluation, stabilizer/emulsifier application, new product research and development and sample production.

Tubular HTST Sterilizer Controlling and Basic Parameters

1-Control mode: semi-automatic control, full automatic control (PLC control, touch screen display).

2-Equipment main configuration: Material pump, hot water pump balance tank, steam controlling system, hot water system, temperature control and recorder, electrical control system, flow rate meter, and CIP cleaning system etc. (steam heating and electric heating )

3-Production capacity: 500L∽40000L/H (according to different production )

4.HTST Sterilizer working technology description:

5℃ inlet →cream separator 45℃(optional) → homogenization 65℃ (optional) →65∽128℃ HTST sterilization→ 5℃/25℃/40℃/68℃/88℃ outlet→buffering tank/filling machine (according to different production )

5.Steam pressure: ≥ 0.6Mpa ,

6.Compressed air: ≥ 0.7mpa

7.Cooling water inlet temperature: ≤30℃. pressure: ≥0.3mpa

8.Chilled water inlet temperature: ≤10℃. pressure: ≥0.3mpa

1-Fresh Milk HTST Sterilizer technology :

5℃ inlet →cream separator 45℃(optional) → homogenization 65℃→115℃ HTST→ 5℃ outlet→buffering tank

2.Coconut Milk HTST Sterilizer technology :

5℃ inlet →125 ℃ HTST→ 5℃ outlet→buffering tank

3- Whipping Cream HTST Sterilizer technology :

40℃ inlet →120℃ HTST→ 10℃ outlet→buffering tank

4-Juice & Beverage HTST Sterilizer technology :

25℃ inlet→homogenization 65℃(optional)→125℃ HTST→ 25℃ outlet→buffering tank

25℃ inlet→homogenization 65℃(optional)→125℃ HTST→ 85℃ outlet→Filling machine

5-Soybean sauce HTST Sterilizer technology :

28℃ inlet→125℃ HTST→ 50℃ outlet→buffering tank

6-Vinegar HTST Sterilizer technology :

28℃ inlet→120℃ HTST→ 60℃ outlet→buffering tank

Tubular HTST Sterilizer s are primarily used for sterilizing products such as egg liquid, juice, milk, ice cream, cream, and jam during production, enabling these products to maintain their quality and freshness over extended periods.

For fresh juice , beer , ice cream , yoghurt etc production

For NFC Juice , Egg liquid , mango puree , whipping cream etc production

Questionnaires of Tubular HTST Sterilizer

More information you can contact us :

Email : [email protected]

Whatsapp: +8613918733638

Wechat: LV06090709

Main Technical Features and advantages of Tubular Sterilizer

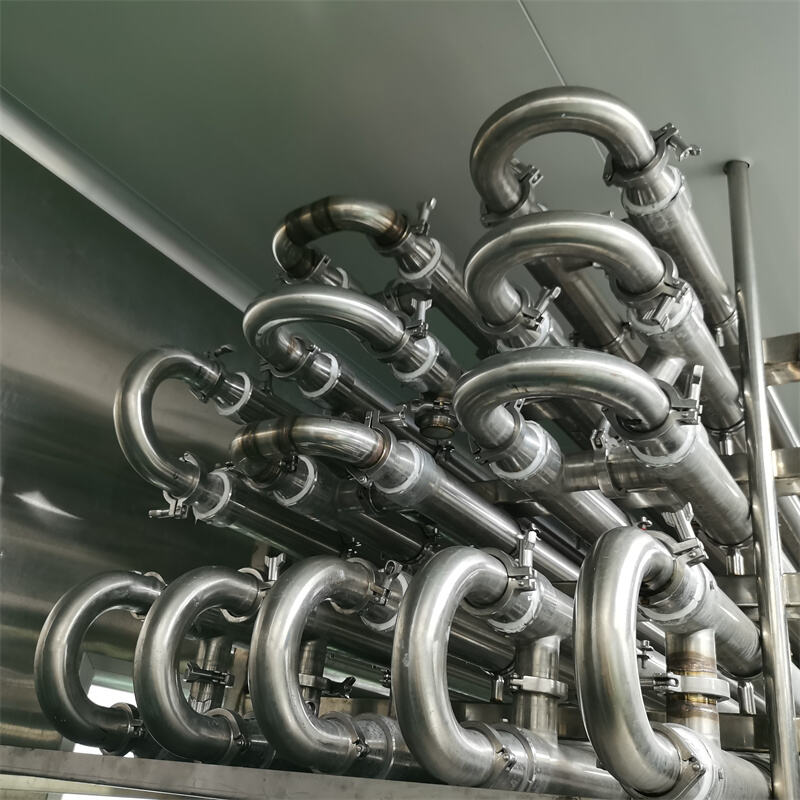

1. Primarily consists of heating, cooling, and regeneration sections. The equipment piping can be configured in multiple forms, facilitating online homogenization;

2. Components in contact with the product are manufactured from 316 stainless steel, while pipeline connections utilize DIN sanitary fittings;

3. Equipped with a touchscreen and PLC program control, enabling real-time display of all product parameters;

4. Can be customized to user requirements for laboratory use, simulating most industrial production conditions.

5. Minimal temperature differential between heating medium and product enables gentle heating;

6. High thermal efficiency with heat recovery rates up to 90%;

7. Precise sterilization temperature control achieved by regulating steam pressure, flow rate, and other parameters;

8. Enhanced safety with components from reputable brands, integrated pressure protection measures, and alarm systems;

9. High automation level, enabling fully automated control and recording of the entire sterilization process.

Q1:Which city are you in? How can I get to your factory? Are you a trading company or factory?

A1: We are in Shanghai City, China . It will take 1 hour from PVG and HongQiao Airports to our factory .

We are a manufacturer with trading branch office .

Q2: Why is your price higher than others?

A2: We offer high-end machines in our business. Welcome to our factory to have a visiting. And you will see the differences in our working plant.

Q3: What is the equipment delivery time?

A3: Normally 30-60 working days depends on different machines,

Heat Exchanger making period : within 15 working days .

Tubular UHT HTST Sterilizer making period : within 30 working days .

Aseptic UHT sterilizer making period : within 50 working days .

Homogenizer and CIP cleaning system making period : within 50 working days .

Blowing & filling & Labelling Machine making period : within 50 working days .

We can shorted the making period according to the working situation .

Q4: How to install your machines when it arrives? How much the cost?

A4: First we can supply the drawing for reference , the equipment will delivery as a whole set machine .

Or We will arrange our engineers to your factory to install the machines and train your staff how to operate the machines If you need.

Customers will take charge of the Accommodation one site and our engineer fee for commission is USD300/day/person.

Or you can arrange you engineers to study at our factory. You are responsible for air tickets,

Q5: How long time for installation and testing ?

A5: Subject to machines and the situation in your factory. If everything is

ready, it will take about 5 days for installation, and 5-10 days for testing and training .

Q6: How about the spare parts?

A6: We will send one year enough easy-broken spare parts together with the machines for free.

Q7: What is your guarantee?

A7: We have one year guarantee sine the equipment is Acceptable debugging and supplying life-long technical support. Our service is also including machine maintain and spared parts .

Q8: What is your payment term?

A8: Single equipment payment item : 50%T/T as advance payment, then 50% TT payment before shipping. ( L/C is also supported) .

The turkey processing line payment item : 40%T/T as advance payment, then 60% TT should be paid before shipping.
