CIP cleaning system

CIP Cleaning System Equipment (Cleaning In Place) is an industrial cleaning system used in fluid pharmaceuticals, food processing, and other fields. It achieves automated cleaning by circulating cleaning solution through sealed pipelines to spray the inner surfaces of equipment.

The system features a human-machine interface that automatically adjusts parameters such as cleaning duration, pH value, and temperature. It supports both manual and automatic control modes, with the ability to record operational processes to meet GMP certification requirements. Equipment configurations include single-tank, dual-tank, and multi-tank setups, available in mobile or stationary structures. Core functionalities encompass zoned cleaning, energy-efficient external circulation design, and water-saving return systems. Imported diaphragm pumps reduce operational and maintenance costs. Fully automated models feature cleaning solution monitoring, replenishment, and drainage capabilities, meeting hygiene and efficiency demands for large-scale production environments.

Main features of CIP system :

1. Stable CIP in-situ cleaning with graphical user interface display.

2. Automatic switching of process parameters, including self-adjusting cleaning duration, pH, temperature, and other settings.

3. Dual operating modes: manual control or automatic control.

4. All operations are fully recordable for GMP compliance.

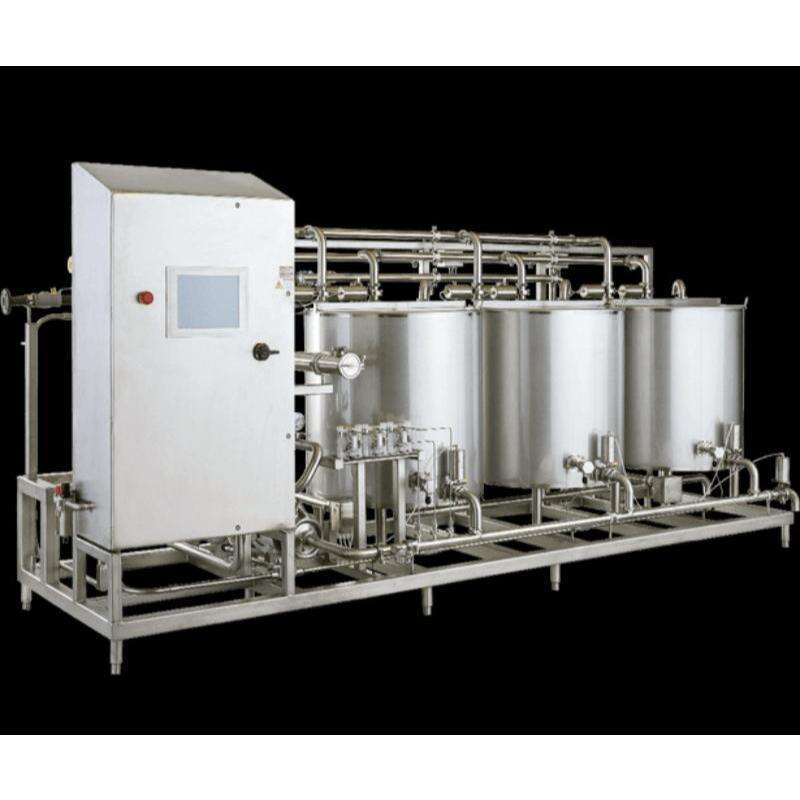

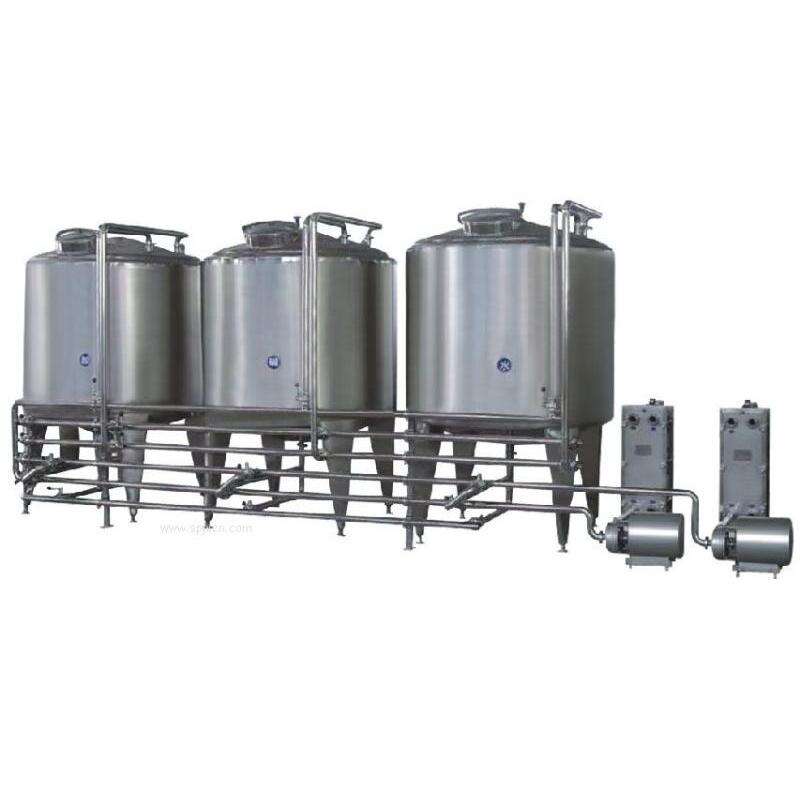

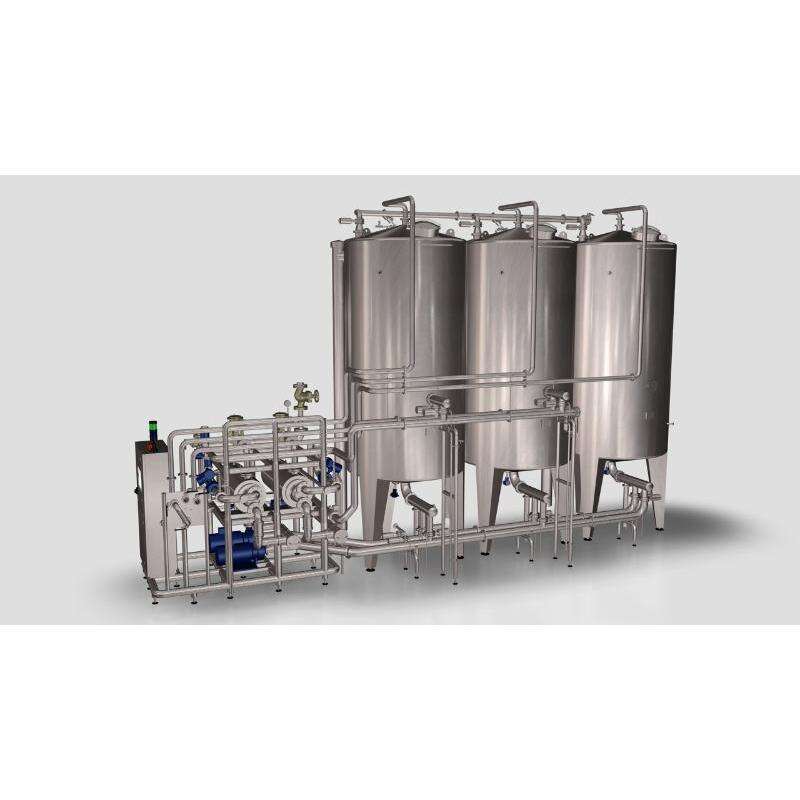

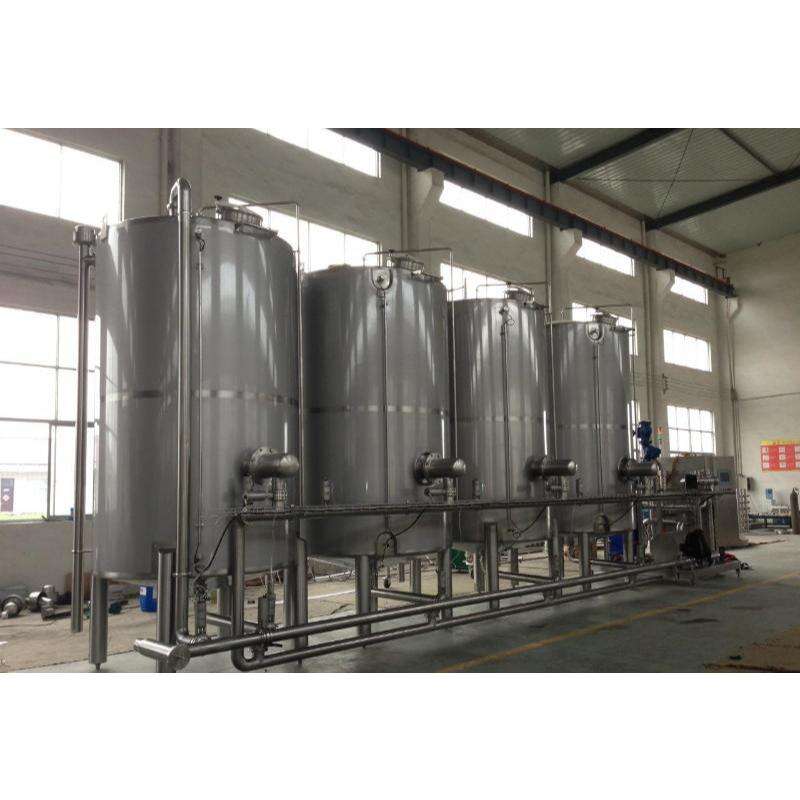

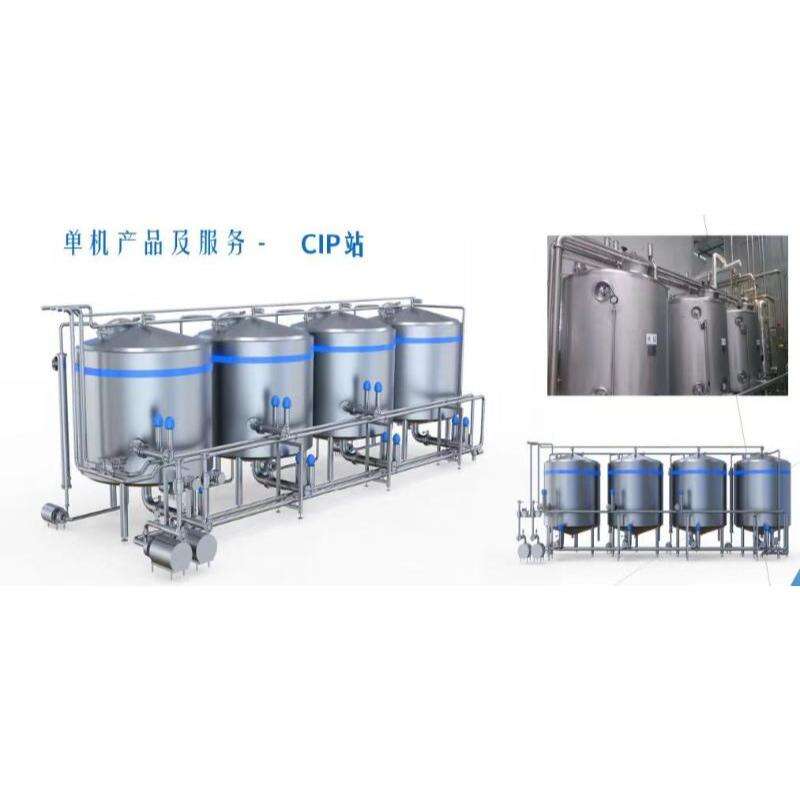

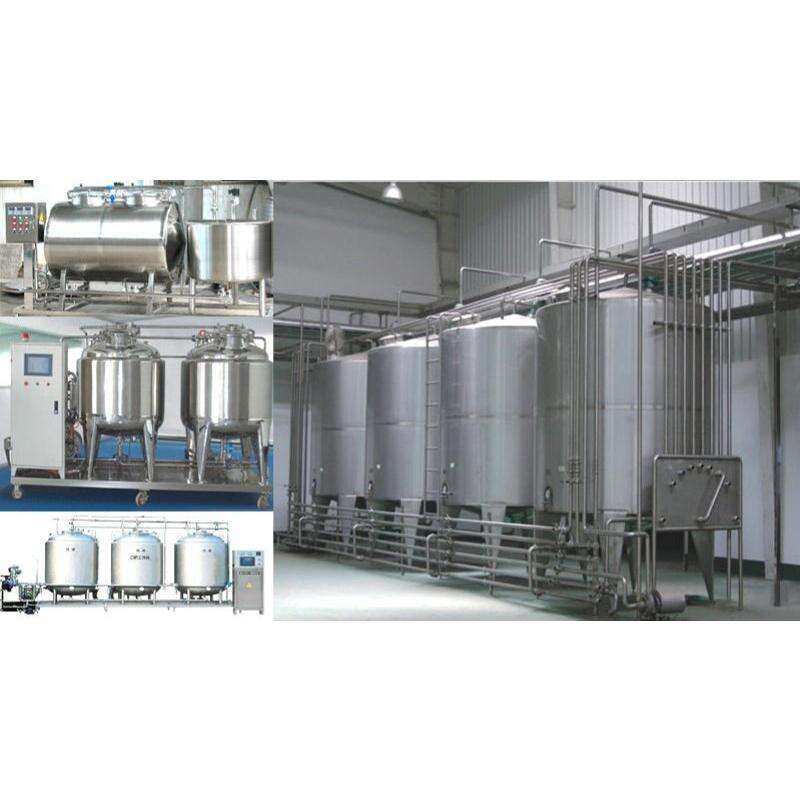

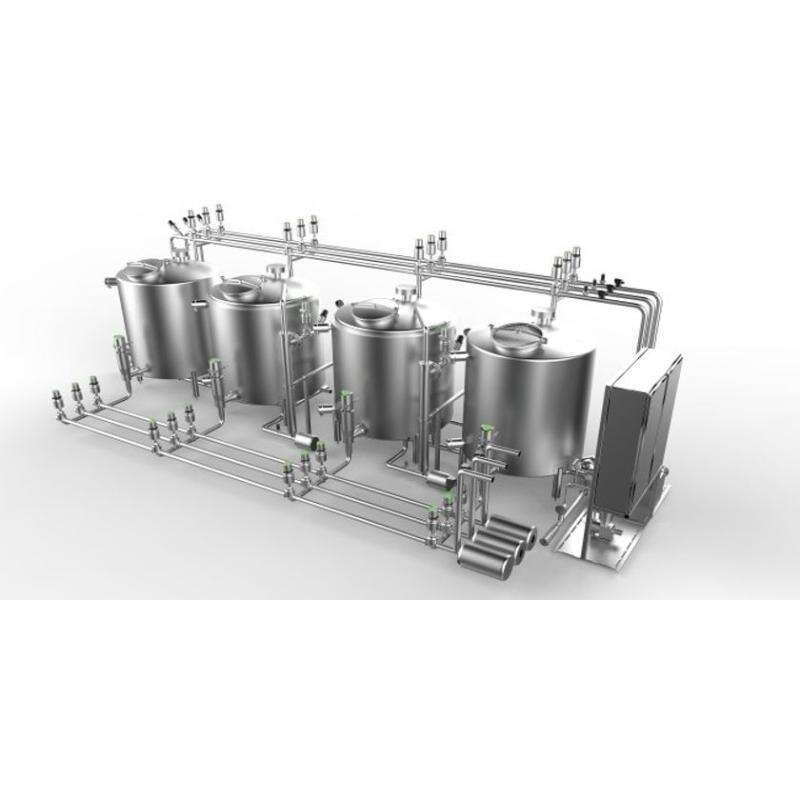

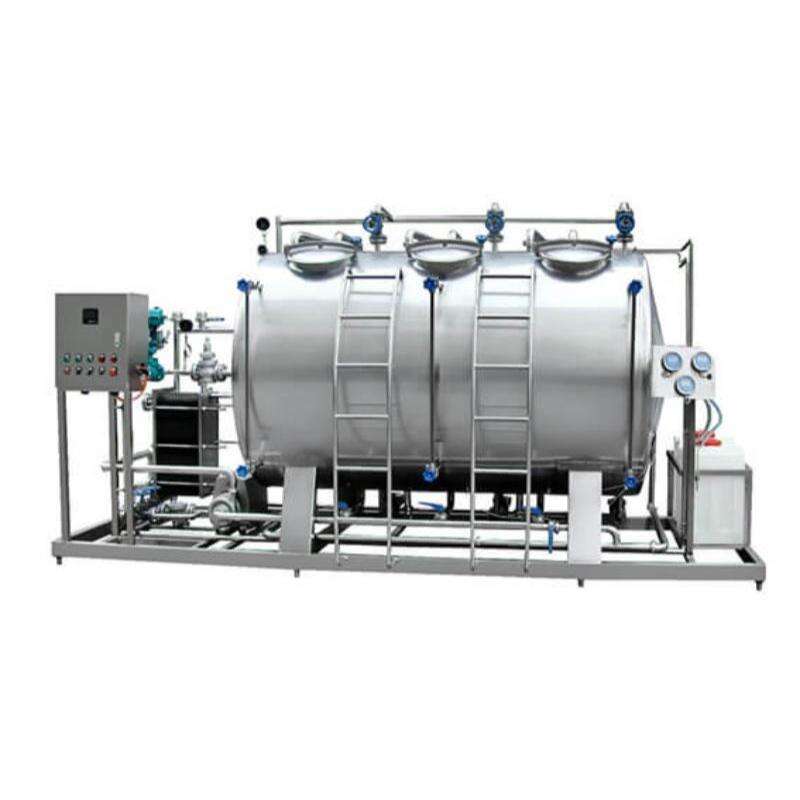

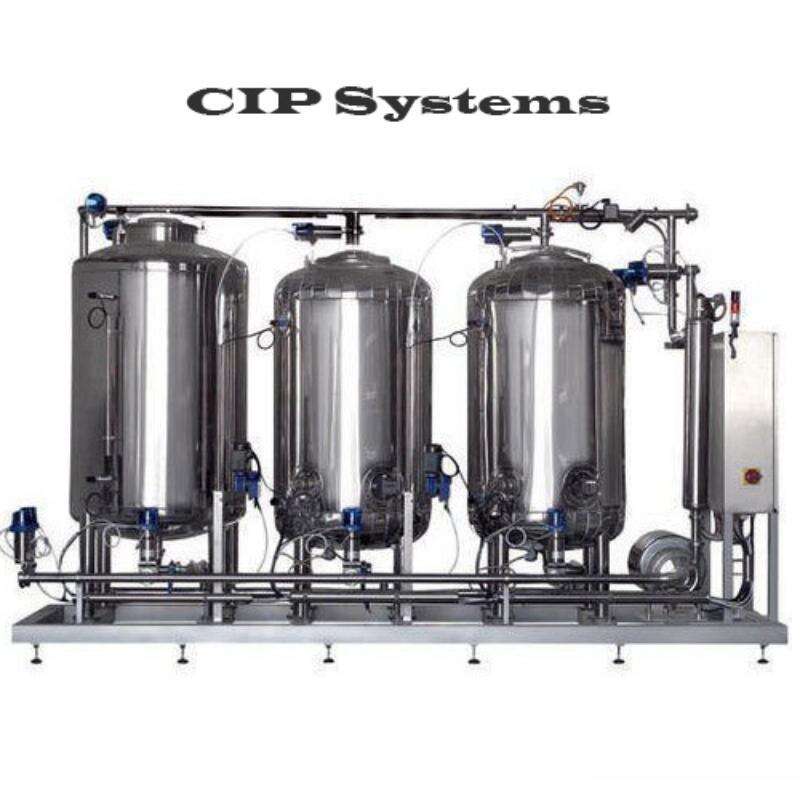

5. CIP cleaning systems available in single-tank, dual-tank, and multi-tank configurations, with mobile and stationary options.

CIP cleaning system is a highly automated cleaning system specifically designed for the internal cleaning of pipes, tanks, vessels, and equipment within industries such as food, beverage, pharmaceuticals, dairy, biotechnology, and chemicals.

More information you can contact us :

Email : [email protected]

Whatsapp: +8613918733638

Wechat: LV06090709

1. The CIP in-place cleaning system features low operating costs, a compact structure, and a small footprint. It is easy to install and maintain, enabling effective cleaning of production equipment such as tanks, vessels, and pipelines directly in place. The entire cleaning process operates within sealed production equipment, tanks, vessels, and pipelines, significantly reducing the risk of secondary contamination.

2. CIP systems can be configured with one to four cleaning circuits based on production requirements. Systems with two or more circuits enable simultaneous cleaning of one or multiple zones, or cleaning during ongoing production. This significantly reduces CIP cycle times during manufacturing.

3. Utilizing American-imported diaphragm pumps for suctioning concentrated acids and alkalis not only enhances equipment reliability and reduces maintenance frequency but, more importantly, lowers operational costs.

4. The external circulation system effectively reduces energy consumption.

5. The recirculation system significantly minimizes CIP water usage.

6. Hot water system for media.

7. Notably, the fully automated CIP cleaning system enables automatic detection, replenishment, discharge, display, and adjustment of cleaning solutions. Its reliable operation, high automation level, simple operation, and excellent CIP cleaning results make it highly compatible with the hygiene requirements and production environment standards of modern large-scale fluid pharmaceutical and food processing technologies.

Q1:Which city are you in? How can I get to your factory? Are you a trading company or factory?

A1: We are in Shanghai City, China . It will take 1 hour from PVG and HongQiao Airports to our factory .

We are a manufacturer with trading branch office .

Q2: Why is your price higher than others?

A2: We offer high-end machines in our business. Welcome to our factory to have a visiting. And you will see the differences in our working plant.

Q3: What is the equipment delivery time?

A3: Normally 30-60 working days depends on different machines,

Heat Exchanger making period : within 15 working days .

Tubular UHT Pasteurizer making period : within 30 working days .

Aseptic UHT sterilizer making period : within 50 working days .

Homogenizer and CIP cleaning system making period : within 50 working days .

Blowing & filling & Labelling Machine making period : within 50 working days .

We can shorted the making period according to the working situation .

Q4: How to install your machines when it arrives? How much the cost?

A4: First we can supply the drawing for reference , the equipment will delivery as a whole set machine .

Or We will arrange our engineers to your factory to install the machines and train your staff how to operate the machines If you need.

Customers will take charge of the Accommodation one site and our engineer fee for commission is USD300/day/person.

Or you can arrange you engineers to study at our factory. You are responsible for air tickets,

Q5: How long time for installation and testing ?

A5: Subject to machines and the situation in your factory. If everything is

ready, it will take about 5 days for installation, and 5-10 days for testing and training .

Q6: How about the spare parts?

A6: We will send one year enough easy-broken spare parts together with the machines for free.

Q7: What is your guarantee?

A7: We have one year guarantee sine the equipment is Acceptable debugging and supplying life-long technical support. Our service is also including machine maintain and spared parts .

Q8: What is your payment term?

A8: Single equipment payment item : 50%T/T as advance payment, then 50% TT payment before shipping. ( L/C is also supported) .

The turkey processing line payment item : 40%T/T as advance payment, then 60% TT should be paid before shipping.
