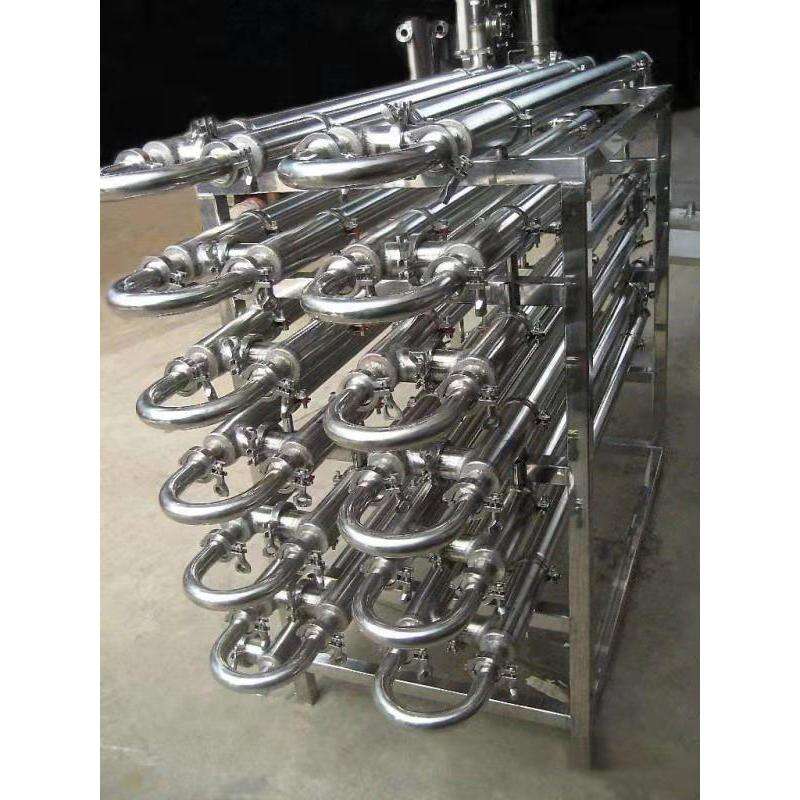

Tubular Heat Exchanger Sus304/316L for Cream Honey Sauce Paste

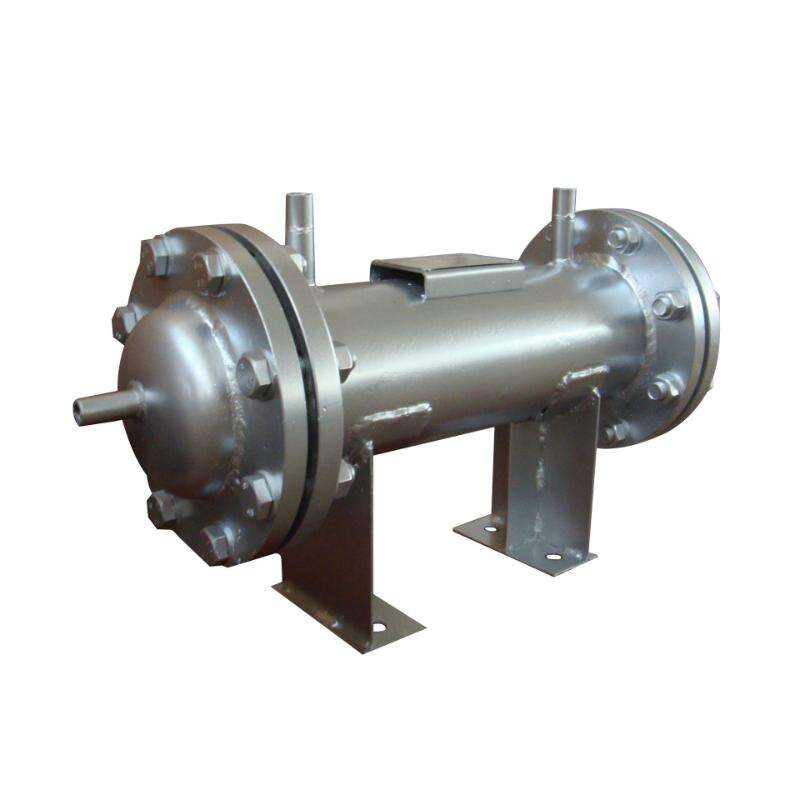

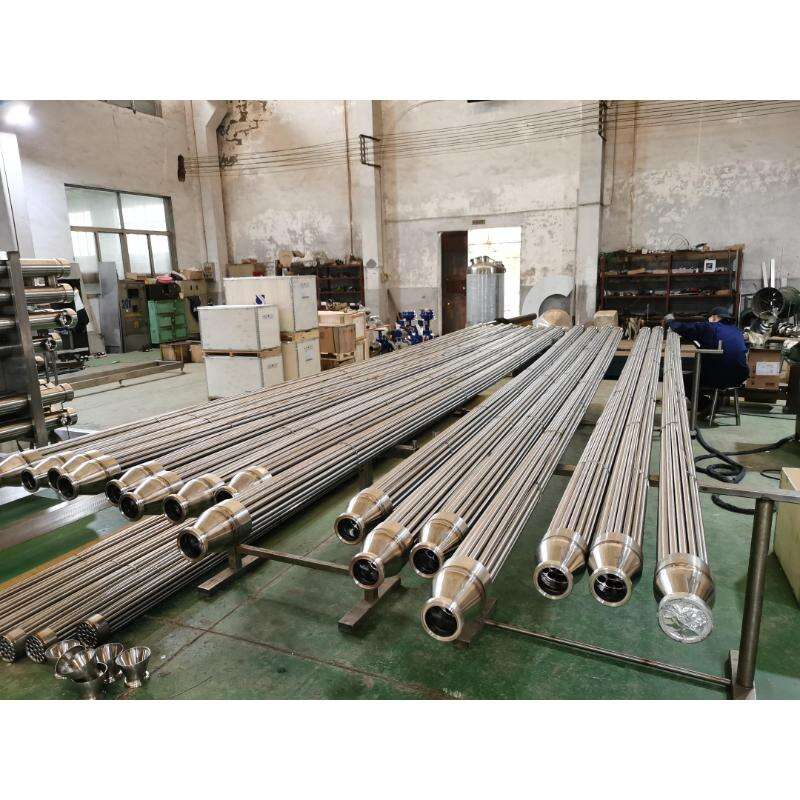

3.1 Tubular heat exchanger is the most widely used heat exchanger in dairy, food, beverage, chemical and alcohol production.

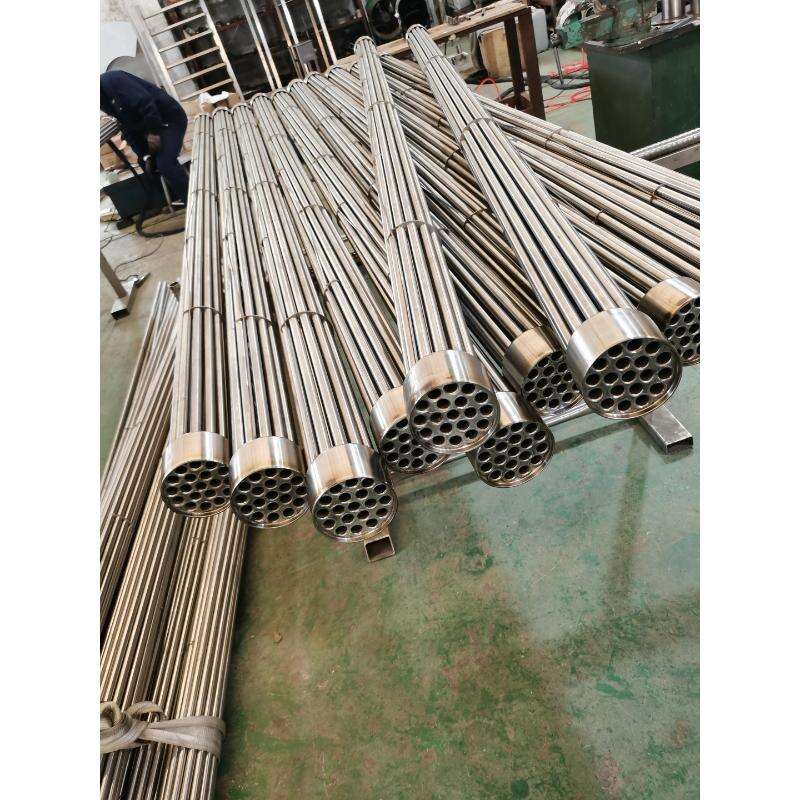

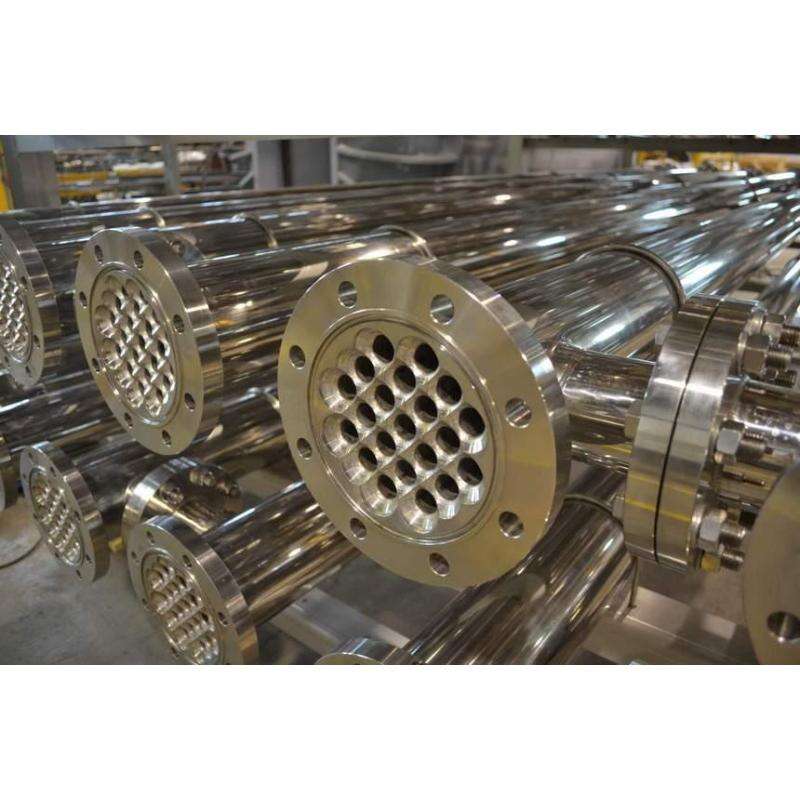

It is mainly composed of shell, tube plate, heat exchange tube, head, baffle plate and so on.

The required material can be made of ordinary carbon steel or stainless steel (Sus304, 316L, SMO254, SS2205 etc ).

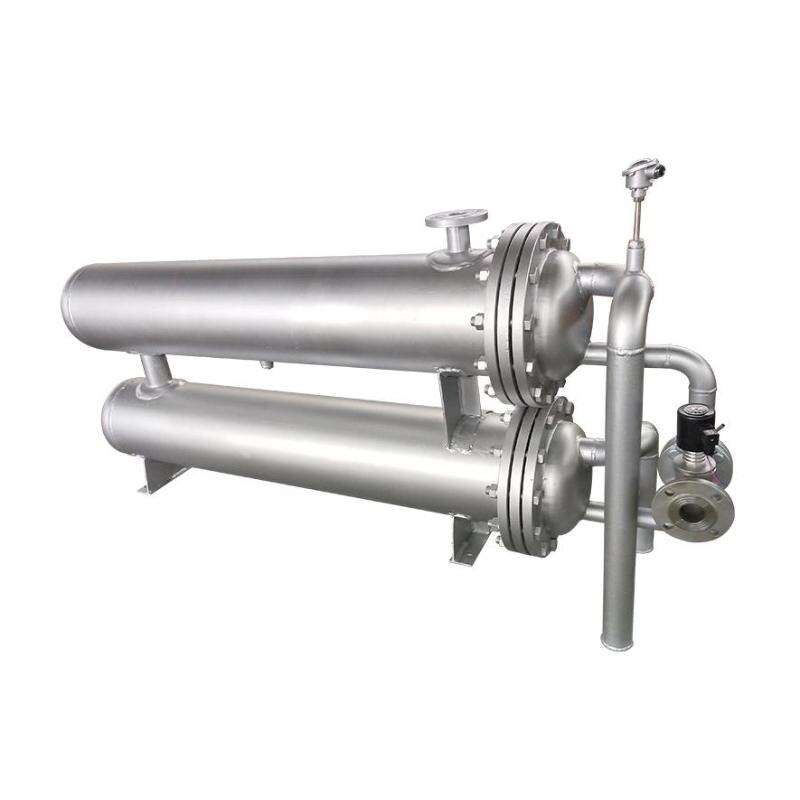

During heat exchange, a fluid enters from the connecting pipe of the head, flows in the pipe, and flows out of the outlet pipe at the other end of the head, which is called the pipe side; Another fluid enters the shell through the nozzles and flows out of the shell through another nozzles. This is called the shell side.

3.2 Advantages of tubular heat exchanger:

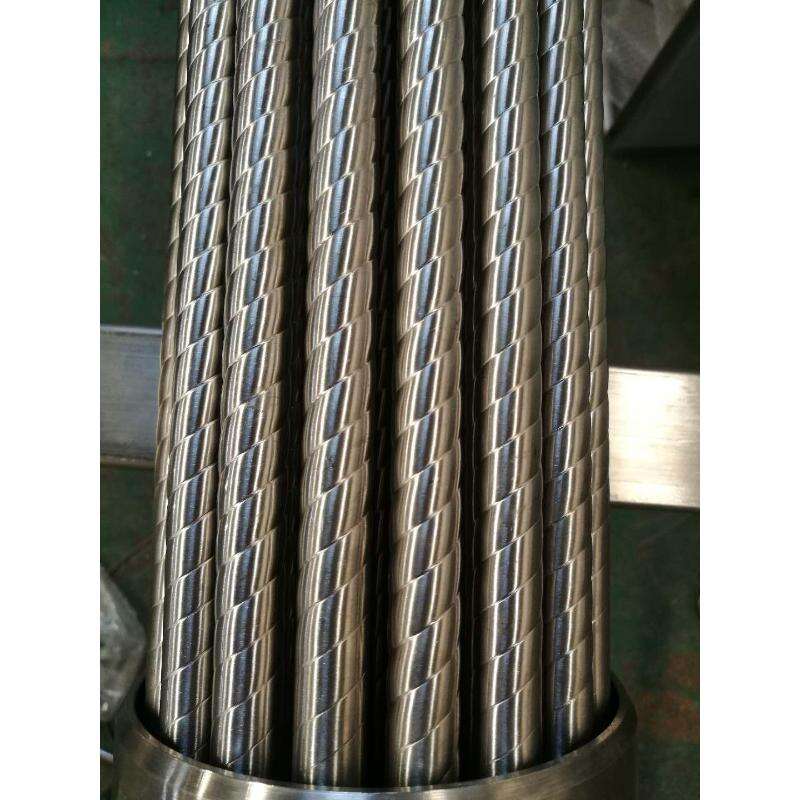

1, High heat transfer coefficient: threaded tube is made of stainless steel with high thermal conductivity of the internal and
external thread combined with high efficiency heat transfer element, made of threaded tube heat exchanger, in the case of fluid resistance is not large, it forms strong turbulence, greatly improve the heat transfer coefficient inside and outside the tube.
2. Compact structure: large heat transfer area per unit volume. The total heat transfer coefficient is high, so the floor area is greatly reduced, saving materials and space.
3. It is not easy to scale: due to the special concave and convex structure of the threaded pipe, it produces multi-flow layer and rotating shape scouring effect inside and outside the pipe. In addition, the heat extension and cold contraction of the pipe will not leave impurities inside and outside the pipe wall, so it is not easy to scale and the long-term operation effect is good.
4, Not easy to leak: the length of the product seal, the thick thread of the thread pipe similar to the expansion joint, its own
compensation ability, heat exchanger thermal stress is small, not easy to leak.
5, Easy installation: this series of heat exchanger has horizontal and vertical two types of easy installation in different

1-Milk & Cream Cooling technology :

Milk collection and Cooling : 30℃→5℃

Ice water temp:12℃←2℃(3:1)

2-Coconut Cream Cooling technology :

Milk & Water collection and Cooling : 30℃→5℃

Ice water temp:12℃←2℃(3:1)

2-Set yoghurt Cooling technology :

Yoghurt: 45℃→15℃

Ice water temp:12℃←2℃(3:1)

3-Ice cream Cooling : 40℃→5℃

Ice water temp:12℃←2℃(4:1)

4-CIP Heating technology :

THE : steam Heating : 50℃→85℃ ( steam pressure 0.6Mpa)

5-Juice & Beverage Heating technology :

THE : 35℃→85℃ ( heated hot water 0.3Mpa)

Juice & Beverage Cooling technology :

THE : 85℃→45℃ ( cooling water 0.3Mpa)

Cooling water temp:40℃←30℃(4:1)

6-Sugar Melting & Heating technology :

THE : 30℃→65℃ ( heated hot water 0.3Mpa)

Sugar solution Cooling technology :

THE : 65℃→30℃ ( cooling water 0.3Mpa)

Cooling water temp:40℃←30℃(3.5:1)

7- Tomate Paste Heating technology :

THE : steam Heating : 25℃→95℃ ( steam pressure 0.6Mpa)

Tomate Paste Cooling technology :

THE : steam Heating : 95℃→50℃ ( cooling water 0.3Mpa)

Cooling water temp:40℃←30℃(4.5:1)

Tubular heat exchangers are widely used in various applications, including Dairy, Beverage, Juice , Honey, Cream, Tomato paste, Chilli sauce ,soymilk. Soybean sauce , HVAC industrial processes, and district Heating and Cooling.

Technical parameter of Tubular heat exchanger

Single section tubular heat exchanger

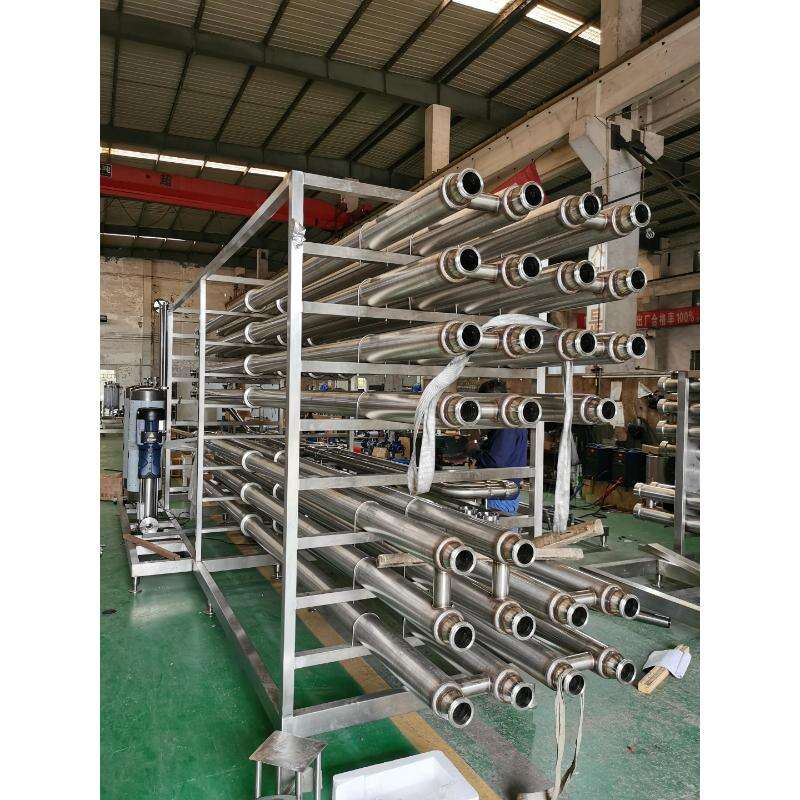

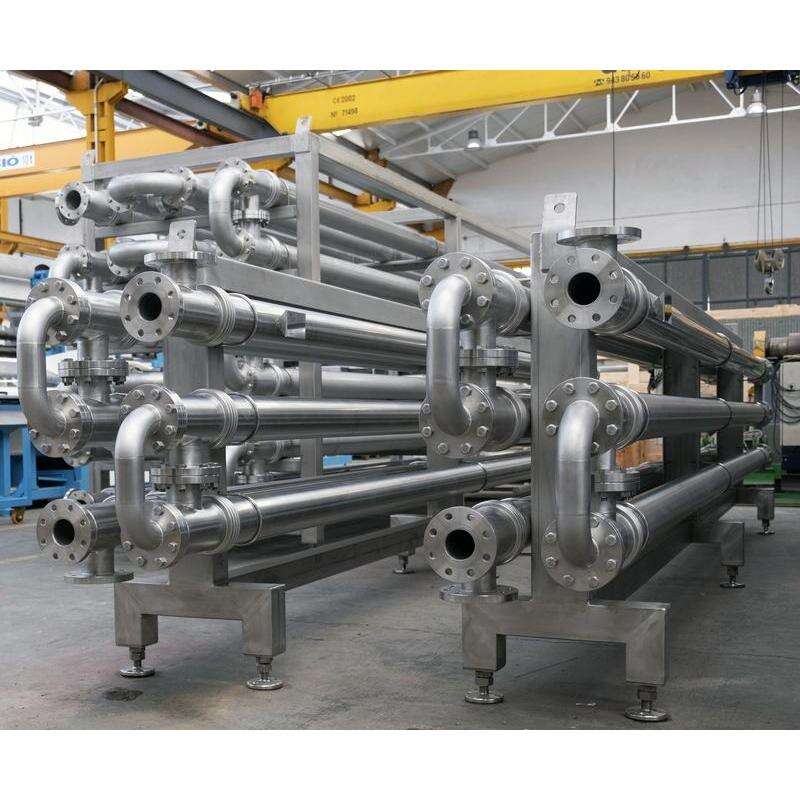

Multi-section tubular heat exchanger

More information you can contact us :

Email : [email protected]

Whatsapp: +8613918733638

Wechat: LV06090709

1 . We will select different Tubular types and materials based on the various working conditions of the customers.

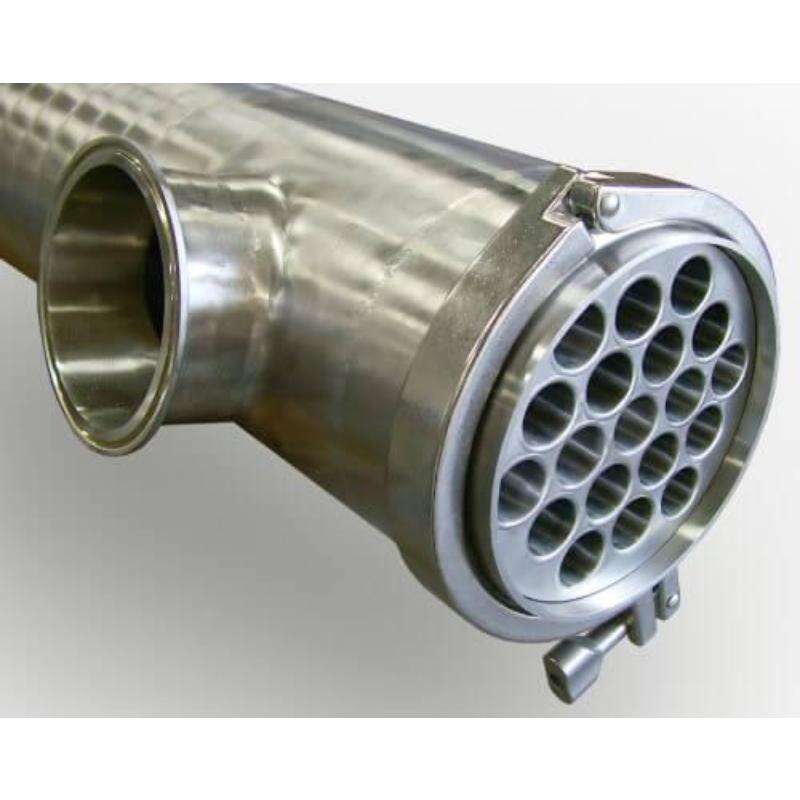

2. CONLON Tube tubular heat exchangers offer many processing advantages, including the ability to handle high pressures and temperatures; fluids with large quantities of particulates, and high viscosity products. Designed for sanitary use and clean-in-place (CIP) they are robust, offer long process runtimes, and are easy to maintain.

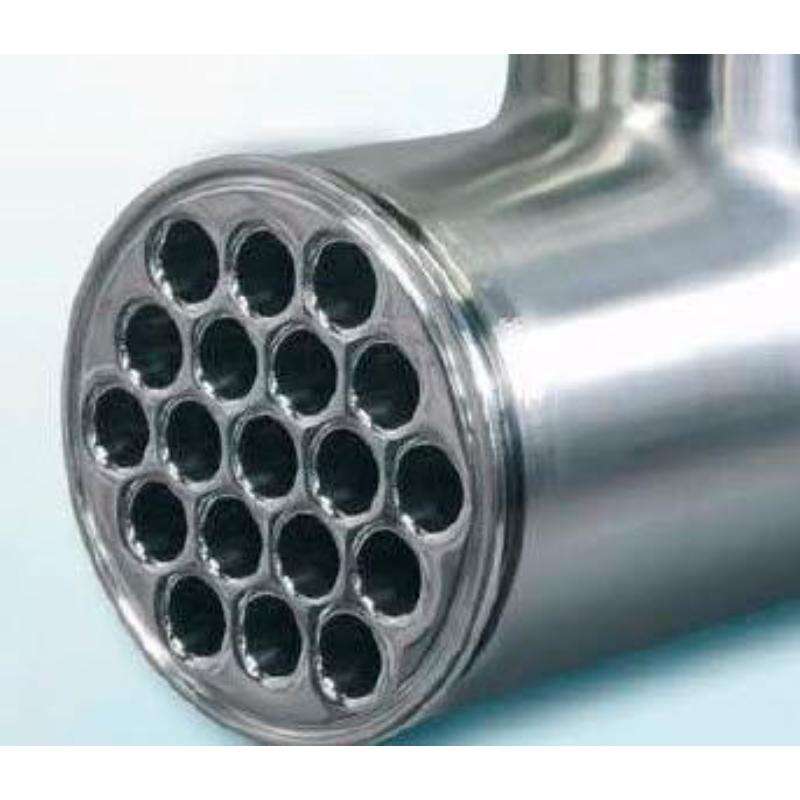

3. With different types and a wide range of options, CONLON Tube THEs have been designed with expert knowledge and understanding of the needs of the dairy, nutrition and health industries. They can be supplied with smooth or corrugated tubes, in a range of construction materials from stainless steel to special alloys to suit fluid properties and are carefully customized to process duty requirements. Whatever your heat transfer needs, our experts will help you find the best solution.

• Working temperatures up to 545°F/285°C
• Design pressures to 1088 psig/75 bar
• Hygienic operation, CIP
• Fully welded or O-ring types
• Choice of materials including 316/316L stainless steel (standard), 304/304L, AISI 316Ti, duplex
