Scraped Surface Heat Exchanger Sus304/316L for Jam Cream Paste

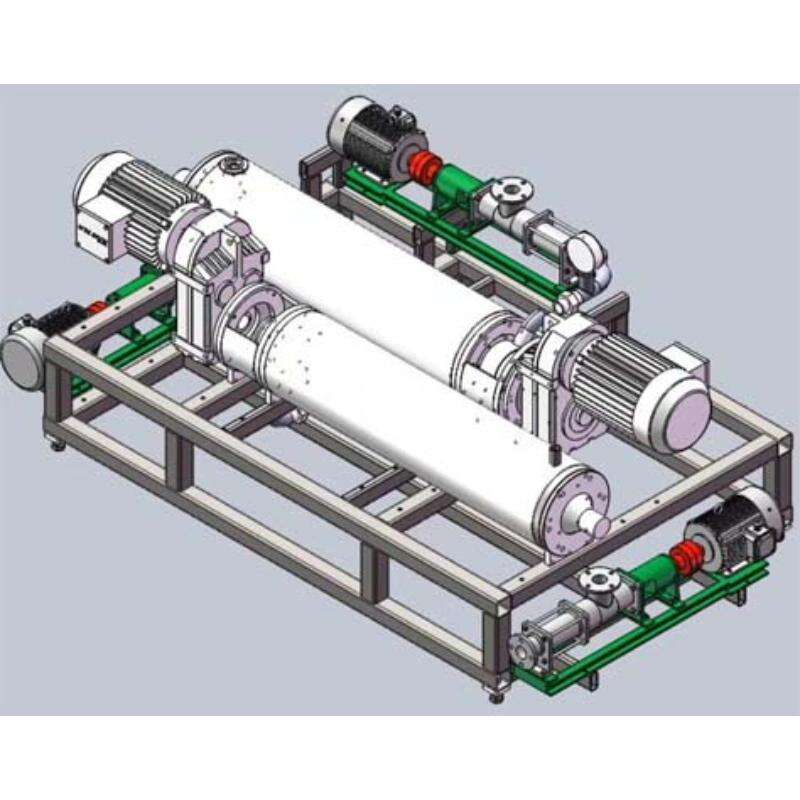

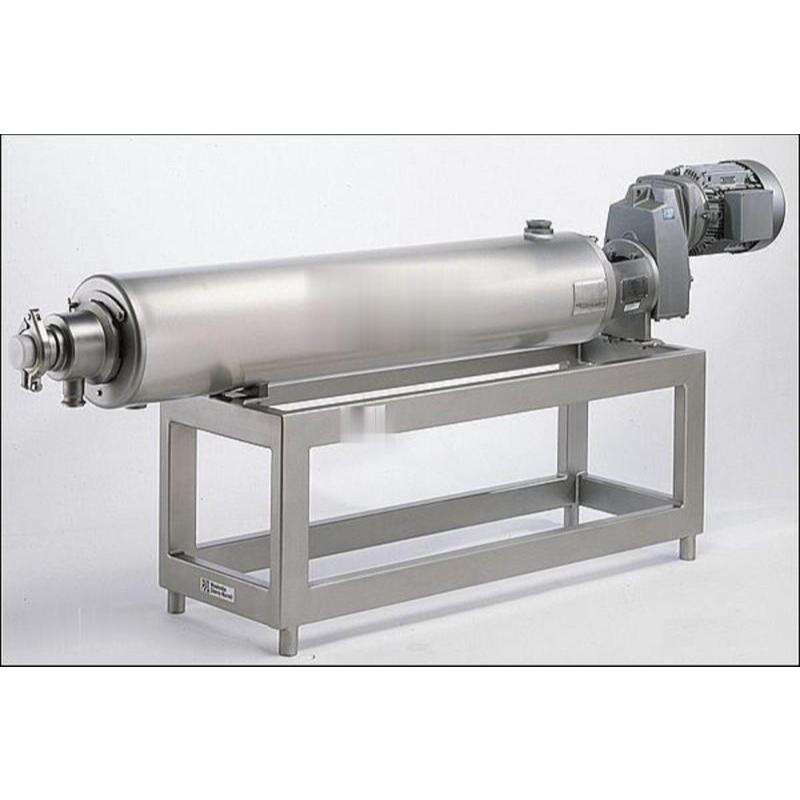

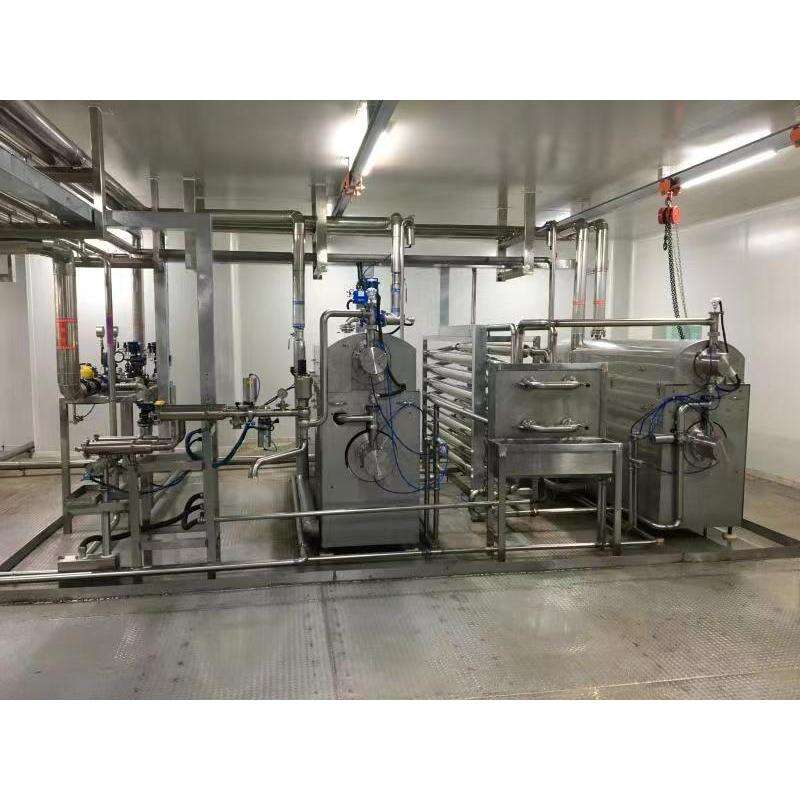

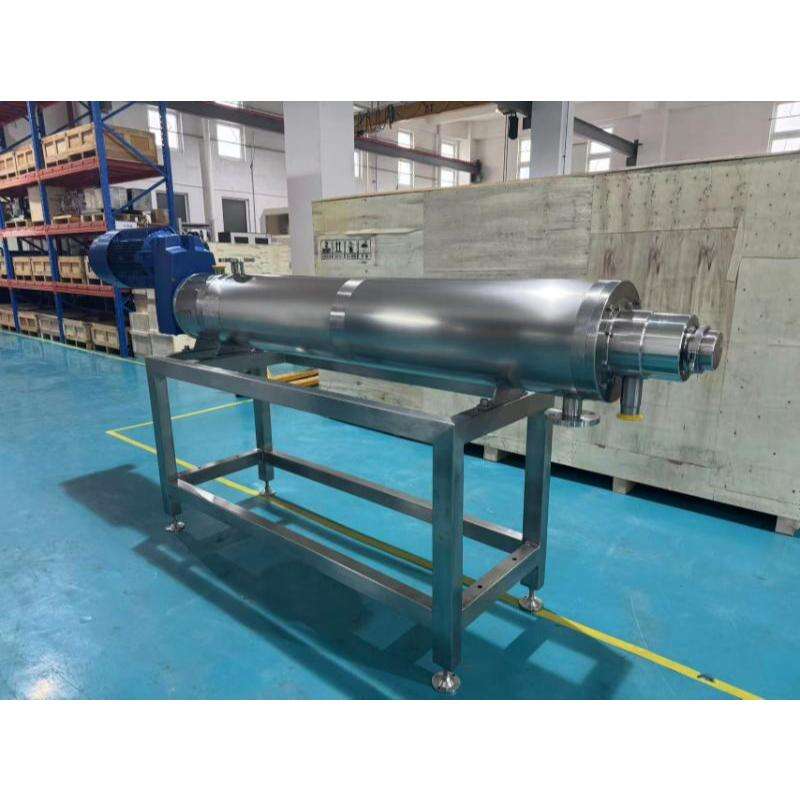

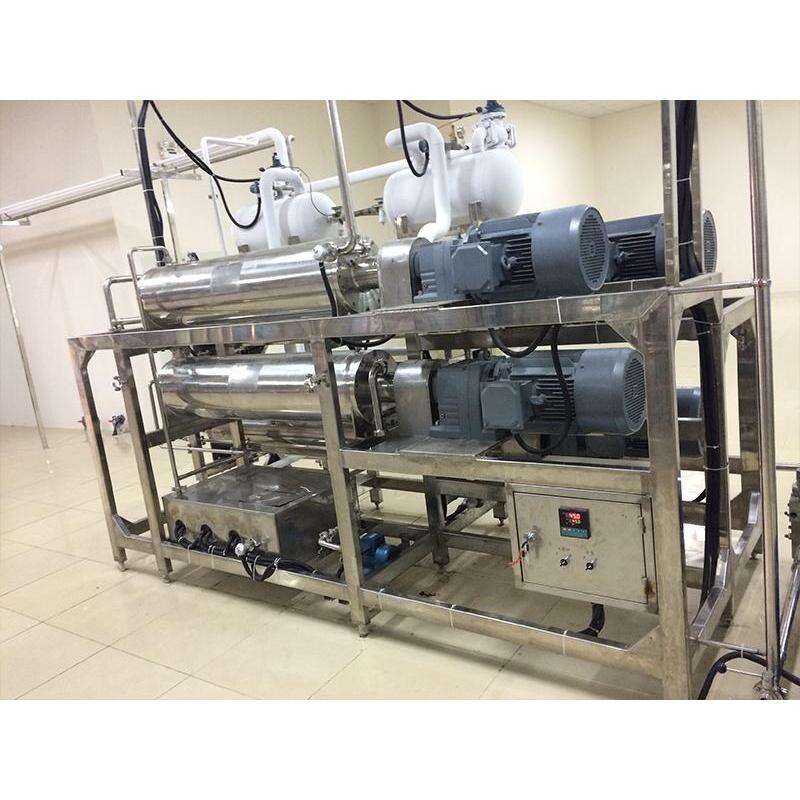

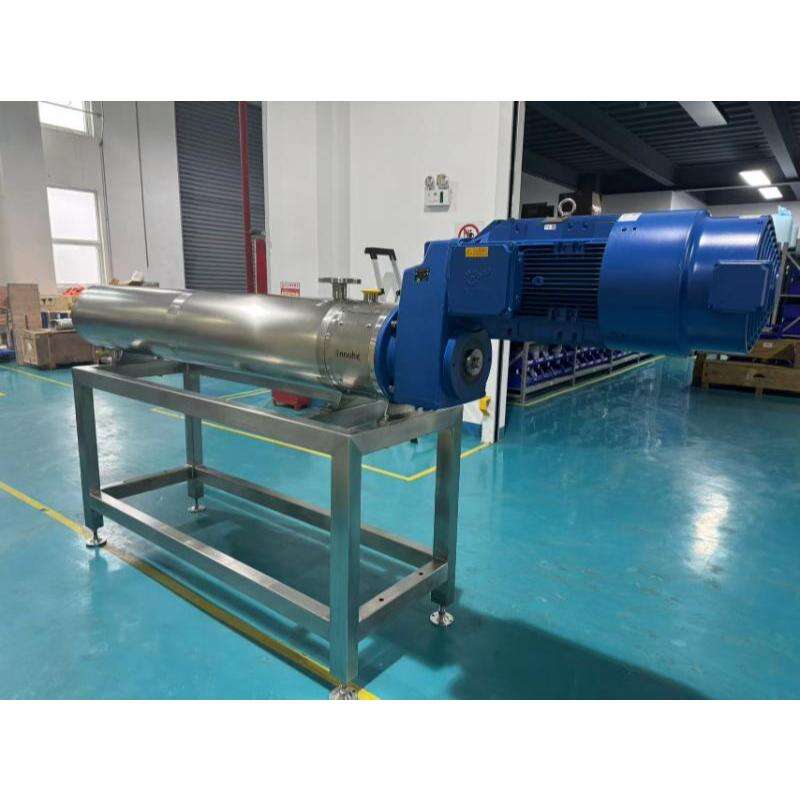

3.1Scraped Surface Heat Exchanger (Vertical Type & Horizontal Type )

The scraped surface heat exchanger is a device that enhances heat transfer efficiency by agitating the fluid with scrapers and cleaning the heat transfer surface.

It is suitable not only for low-viscosity fluids but particularly for rapid heat exchange of high-viscosity or particulate-containing fluids, preventing the formation of coking films on the heat transfer surface.

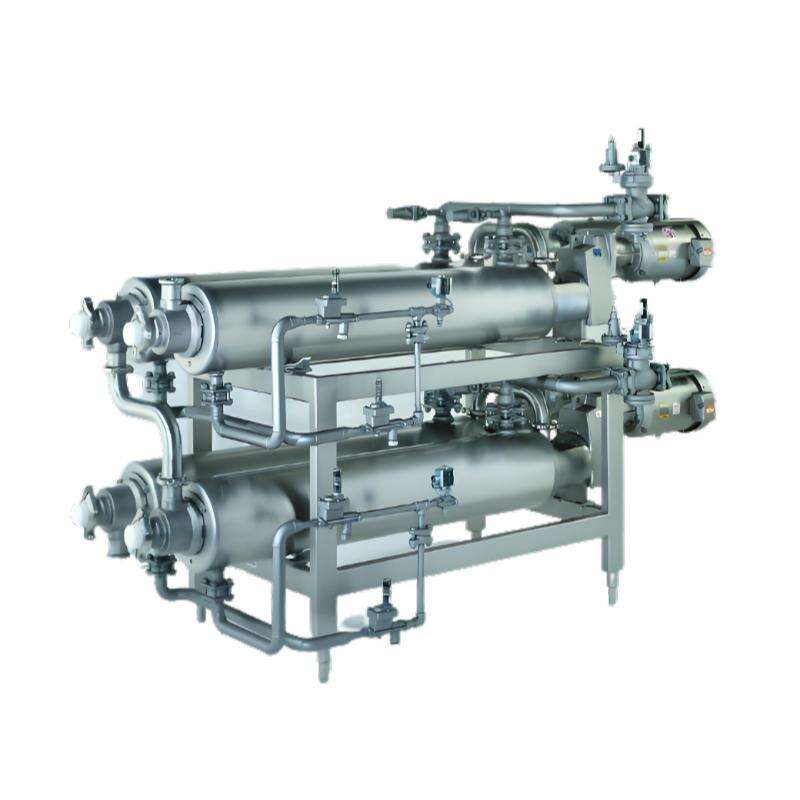

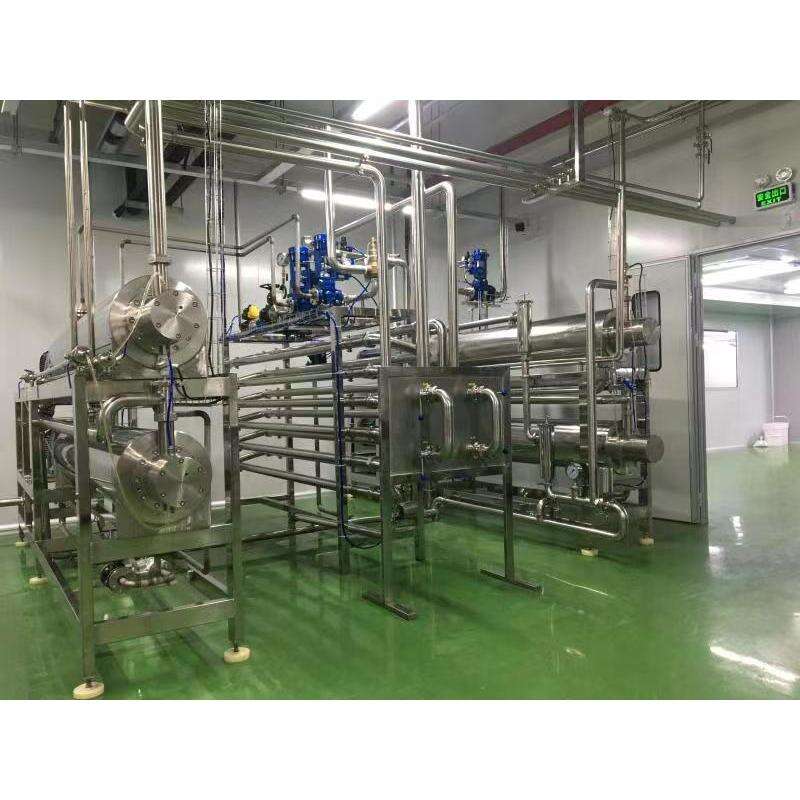

This equipment finds extensive application in the preheating, sterilization, and cooling processes of aseptically packaged foods such as dairy products, tomato paste, and fruit juices. Driven by a gun-fed pump, the fluid is continuously processed through three stacked units. It is also suitable for viscous fluids in pharmaceutical, chemical, and dyeing industries.

3.2 Working principle:

The scraper heat exchanger comprises a material cylinder, jacket, agitator and seal assembly. The material cylinder and agitator shaft form an annular channel for feed liquid flow, while the jacket accommodates heating or cooling media for counter-current heat exchange. During high-speed rotation of the agitator shaft, centrifugal force presses scrapers against the cylinder wall to remove surface films. Steam or sterile water seals prevent feed liquid contamination.

The equipment employs a multi-layer scraper structure capable of processing materials with viscosities up to 50,000 cps and particles as fine as 25mm in diameter, delivering heat transfer efficiency 4 to 6 times that of conventional equipment.

The material fluid flows spirally or vortex-like within the cylinder. The axial and rotational Reynolds numbers determine the mixing effect and heat transfer efficiency.

1- Tomato Paste 2 Chilli Sauce 3 Confiture 4 Cream

5 Chocolate Paste 6 Bearnaise Sauce

Technical parameter of Scraped Surface heat exchanger

Material of Scraped surface heat exchanger

More information you can contact us :

Email : [email protected]

Whatsapp: +8613918733638

Wechat: LV06090709

1 . We will select different Scraped Surface types and materials based on the various working conditions of the customers.

2.The hybrid system continuously scratches the entire heating or cooling surface, resulting in extremely efficient heat transfer. This scraping principle has major efficiency advantages over traditional plate or tube heat exchangers. In addition, this prevents the product from sticking to the side.

3. Mix and maintain uniformity

Another advantage of the mixing system is that the liquid also mixes when it is scraped. This helps to transfer heat and maintain the uniformity of the liquid. In some cases, it is even possible to inflate the product with or without compressed air or nitrogen.

4. Cooling/heating products with rugged components

With a scraper heat exchanger, you can cool and heat products containing robust components. Keep maximum product identification. You can cool/heat products with a maximum particle size of 25 mm.

5. Thorough cleaning

CONLON scraping heat exchangers can be fully incorporated into existing CIP systems. You can clean the CONLON using or against the airflow, and the mixing system can be turned clockwise or counterclockwise. This results in optimal cleaning of CONLON scraping surface heat exchangers.

6. Short shutdown time of scraping surface heat exchanger

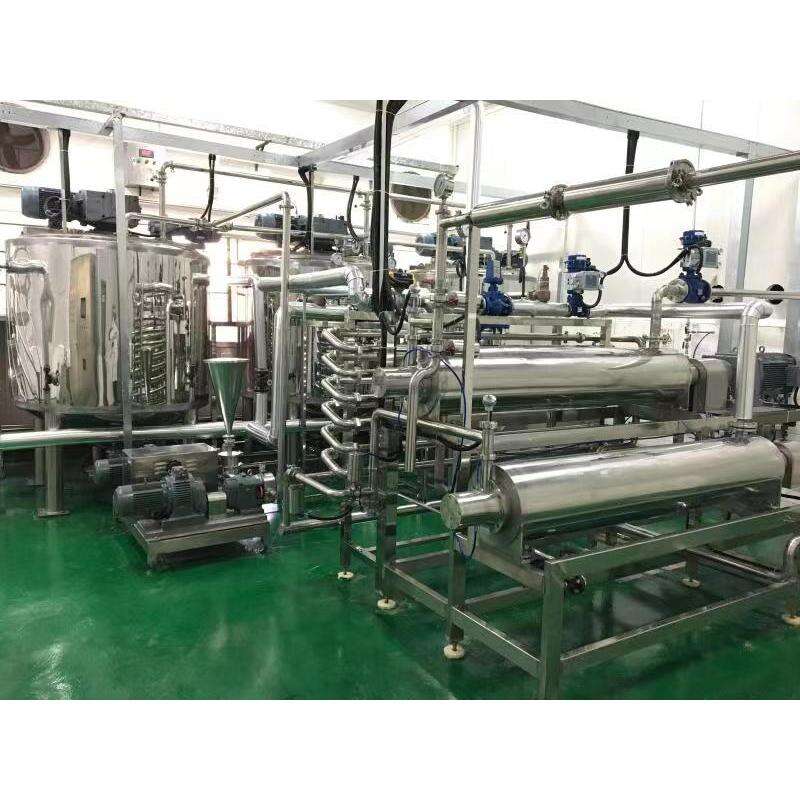

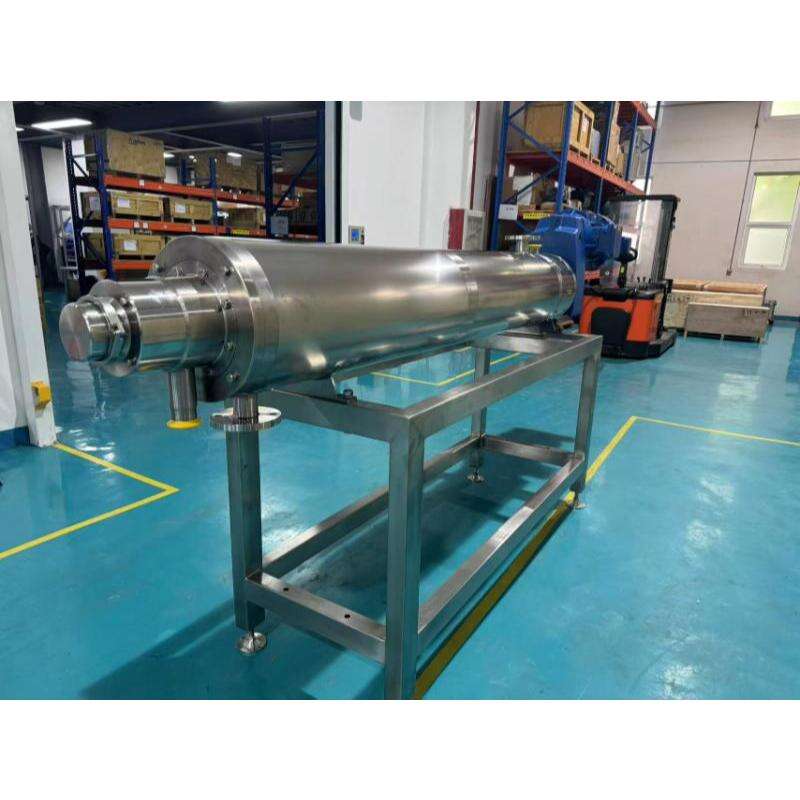

This can save a lot of downtime during repair or replacement. It is also easy to use because wear parts can be checked through the hinge cover. No need to remove shaft seals and bearings first. This simple inspection method can avoid wasting time. 图片20

Q1:Which city are you in? How can I get to your factory? Are you a trading company or factory?

A1: We are in Shanghai City, China . It will take 1 hour from PVG and HongQiao Airports to our factory .

We are a manufacturer with trading branch office .

Q2: Why is your price higher than others?

A2: We offer high-end machines in our business. Welcome to our factory to have a visiting. And you will see the differences in our working plant.

Q3: What is the equipment delivery time?

A3: Normally 30-60 working days depends on different machines,

Heat Exchanger making period : within 15 working days .

Scraped Surface UHT Pasteurizer making period : within 30 working days .

Aseptic UHT sterilizer making period : within 50 working days .

Homogenizer and CIP cleaning system making period : within 50 working days .

Blowing & filling & Labelling Machine making period : within 50 working days .

We can shorted the making period according to the working situation .

Q4: How to install your machines when it arrives? How much the cost?

A4: First we can supply the drawing for reference , the equipment will delivery as a whole set machine .

Or We will arrange our engineers to your factory to install the machines and train your staff how to operate the machines If you need.

Customers will take charge of the Accommodation one site and our engineer fee for commission is USD300/day/person.

Or you can arrange you engineers to study at our factory. You are responsible for air tickets,

Q5: How long time for installation and testing ?

A5: Subject to machines and the situation in your factory. If everything is

ready, it will take about 5 days for installation, and 5-10 days for testing and training .

Q6: How about the spare parts?

A6: We will send one year enough easy-broken spare parts together with the machines for free.

Q7: What is your guarantee?

A7: We have one year guarantee sine the equipment is Acceptable debugging and supplying life-long technical support. Our service is also including machine maintain and spared parts .

Q8: What is your payment term?

A8: Single equipment payment item : 50%T/T as advance payment, then 50% TT payment before shipping. ( L/C is also supported) .

The turkey processing line payment item : 40%T/T as advance payment, then 60% TT should be paid before shipping.
